przedmiotem aukcji jest
100% SPRAWNY :
|
|

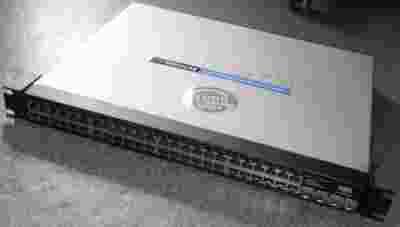

CISCO LINKSYS SRW2048
|
|
|
48x 10/100/1000 (RJ45) , 4x mini-GBIC (SFP) ,
1x CONSOLE
W pełni zarządzalny, gotowy do pracy.
Adres IP: DHCP Login: Admin
manual:
http://www.cisco.com/c/dam/en/us/td/docs/switches/lan/csbms/srw2048/administration/guide/SRW-US_v10_UG_A-Web.pdf
|
|
Features
• 48 10/100/1000 Gigabit Ethernet ports
• 4 MiniGBIC slots for Fiber Gigabit Ethernet expansion
• Non-blocking, store‐and‐forward switching mechanism
• Simplified QoS management enabled by advanced queuing techniques using 802.1p,
Diffserv or ToS traffic prioritization specifications
• Configuration and monitoring from a standard web browser with WebView management
• Secure remote management of the switch via SSH and SSL secure channel network protocols
• 802.1Q based VLANs enable segmentation of networks for improved performance and security
• Private VLAN Edge for simplified network isolation for guests connections or autonomous networks
• Automatic configuration of VLANs across multiple switches through GVRP/GARP
• Automatic port configuration through auto MDI/MDIX and 802.1ab (LLDP)
• User/Network port level security via 802.1X authentication and MAC‐based filtering
• Increased the bandwidth (up to 8x) and added link redundancy with Link Aggregation Control Protocol (LACP)
• Enhanced rate limiting capabilities and storm control, including multicast, broadcast and flood control
• Port mirroring for non‐invasive monitoring of switch traffic
• Jumbo frame support (10KB)
• SNMP v1, v2c, v3 and RMON support
• Fully rack-mountable using the included rack-mounting hardware
|
|
|
Specifications
|
|
Model
|
SRW2048 - 48-Port 10/100/1000 Gigabit Switch with WebView
|
|
Standards
|
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.1q
|
|
Ports
|
48 10/100/1000 RJ-45 ports and 4 shared MiniGBIC slots
|
|
Cabling Type
|
Cat5e or better
|
|
LEDs
|
System, Link/Activity, Gigabit
|
|
Performance
|
|
Switching Capacity
|
96 Gbps, non-blocking
|
|
MAC table size
|
8K
|
|
Number of VLANs
|
256 VLANs
|
|
Management
|
|
Web User Interface
|
Built-in Web UI for easy browser-based configuration (HTTP/HTTPS)
|
|
SNMP
|
SNMP version v1, v2c, v3 with support for traps
|
|
SNMP MIBs
|
RFC1213 MIB-2, RFC2863 Interface MIB, RFC2665 Ether-like MIB,
RFC1493 Bridge MIB, RFC2674 Extended Bridge MIB (P-bridge, Q-bridge),
RFC2819 RMON MIB (groups 1,2,3,9 only), RFC 2618 RADIUS Client MIB
|
|
RMON
|
Embedded Remote Monitoring (RMON) software agent
supports four RMON groups (history, statistics, alarms, and events)
for enhanced traffic management, monitoring, and analysis
|
|
Firmware Upgrade
|
Web Browser upgrade (HTTP)
TFTP upgrade
|
|
Port Mirroring
|
Traffic on a port can be mirrored to another port for analysis
with a network analyzer or RMON probe
|
|
Other Management
|
RFC854 Telnet (Menu-driven configuration)
Secure Shell (SSH) and Telnet Management
RADIUS
TACACS+
Telnet client
SSL security for Web UI
Switch audit log
DHCP client
BootP
SNTP
Xmodem upgrade
Cable diagnostics
PING
Traceroute
Syslog
|
|
Security
|
|
IEEE 802.1X
|
802.1X - RADIUS Authentication. MD5 Encryption
|
|
Access Control
|
ACLs - Drop or rate limit based on:
Source and destination MAC-based
Source and destination IP address*
Protocol*
ToS/DSCP*
Port*
VLAN*
Ethertype*
|
|
Availability
|
|
Link Aggregation
|
Link Aggregation using IEEE 802.3ad LACP
Up to 8 ports in up to 8 trunks
|
|
Storm Control
|
Broadcast, Multicast, and Unknown Unicast
|
|
Spanning Tree
|
IEEE 802.1d Spanning Tree, IEEE 802.1s Multiple Spanning Tree,
IEEE 802.1w Rapid Spanning Tree, Fast Linkover
|
|
IGMP Snooping
|
IGMP (v1/v2) snooping provides for fast client joins and leaves of
multicast streams and limits bandwidth-intensive video traffic to
only the requestors.
|
|
QoS
|
|
Priority levels
|
4 Hardware queues
|
|
Scheduling
|
Priority Queuing and Weighted Round Robin (WRR)
|
|
Class of Service
|
Port-based*
802.1p VLAN priority based*
IPv4/v6 IP Precedence/TOS/DSCP based*
TCP/UDP port-based*
Diffserv*
Classification and remarking ACLs*
|
|
Rate Limiting
|
Ingress policer
Egress rate control
|
|
Standards
|
802.3 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet,
802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet,
802.3x Flow Control, 802.3 ad LACP,802.3af PoE, 802.1D STP,
802.1Q/p VLAN, 802.1w Rapid STP, 802.1s Multiple STP,
802.1X Port Access Authentication
|
|
Layer 2
|
|
VLAN
|
Port-based and 802.1q based VLANs
Private VLAN Edge (PVE)
Management VLAN
|
|
HOL Blocking
|
Head of line blocking prevention
|
|
Jumbo frame
|
Supports frames up to 10K byte frames
|
|
Dynamic VLAN
|
GVRP - Dynamic VLAN Registration
|
|
Standards
|
802.3i 10BASE-T Ethernet, 802.3u 100BASE-TX Fast Ethernet,
802.3ab 1000BASE-T Gigabit Ethernet, 802.3z Gigabit Ethernet,
802.3x Flow Control
|
|
|
Możliwość wystawienia rachunku.
|
|
Udzielamy 3-miesięcznej gwarancji.
|
|
