KONTROLER SAS SATA BR10i LSI SAS3082E-R FV GW-36M

11-07-2012, 20:26
Aukcja w czasie sprawdzania nie była zakończona.

Cena kup teraz: 330 zł

Użytkownik A-PRESS

numer aukcji: 2453377436

Miejscowość ŻARY

Zostało sztuk: 10 Wyświetleń: 86

Koniec: 12-07-2012, 9:41

Dodatkowe informacje:
Stan: Nowy

NOWY KONTROLER SAS

kontroler RAID macierzowy / dyskowy

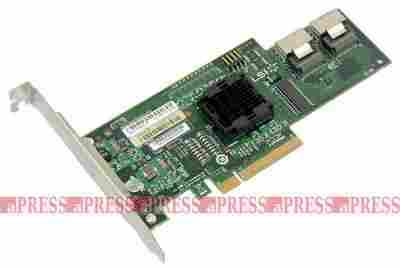

IBM ServeRAID BR10i LSI SAS3082E-R
8-port PCI-Express SAS RAID controller.
2x internal SFF-8087 connectors

IBM / LSI Controller Serverraid Br10i SAS RAID 8-Ports SAS SATA SSD 300Mbps PCI-E

FRU SAS3082E SAS3082E-R 44E8690 44E8689 LSISAS1068E

Description: The ServeRAID-BR10i controller PCI Express interface is compliant with the PCI Express Specification, revision 1.0a. The controller uses either a standard PCI or low-profile PCI bracket type. The controller SAS interface is compatible with the ANSI Serial Attached SCSI 1.0 specification and the Serial ATA 1.0a specification. The functionality of the ServeRAID-BR10i controller comes from the LSI1068E controller chip. The LSI1068E chip integrates eight high-performance SAS/SATA PHYs. The design of the controller makes it easy to add SAS interfaces to any computer, workstation, or server with a PCI Express bus. The controller provides a 2 Mb x 8-bit flash ROM for storing the BIOS and firmware. The controller provides up to 32 Kb x 8-bit NVSRAM for storing the nonvolatile RAID information when a system failure occurs. The controller provides a 128 Kb x 36-bit pipelined burst static random access memory (PBSRAM) device for storing SAS address port information, which enables connection to more than 128 devices.

Storage Controller
Controller interface type Serial ATA-300 / SAS
Data Transfer Rate 300 MBps
Storage Controller / Supported Device Type Disk array (RAID)
RAID level RAID 0, RAID 1, RAID 1E
Processor LSI
General
Device Type Storage controller (RAID) - Plug-in card - Low profile
Interface Type PCI Express
Width 6.6 in
Depth 0.6 in
Height 2.7 in
Weight 3.2 oz
Expansion / Connectivity
Expansion Bays None
Expansion Slot(s) None
Interfaces 2 x Storage ( Internal )
Connections None
Compatible Bays None
Compatible Slots 1 x PCI Express
Miscellaneous
Compliant Standards UL, TUV, VDE,

= 100% SPRAWNY =
= WYSTAWIAMY FAKTURY VAT =
= GWARANCJA 36 MIESIĘCY =

KUPUJESZ W SKLEPIE - OD SUPER SPRZEDAWCY!!!
SPRAWDŹ KOMENTARZE

WYSYŁKA UPS = DOSTAWA W 24H

Zdjęcia przedstawiają licytowany przedmiot!
ZAPRASZAM DO LICYTACJI
