Kontroler RAID PERC 4e/Si do serwera DELL 1850.

Kontrolery nie posiadają baterii - można je dokupic na pozostałych moich aukcjach.

Kontrolery posiadają wgrany najnowszy firmware.

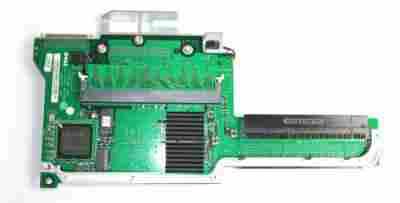

W zestawie jest płyta kontrolera, pamięć podtrzymująca 256MB oraz osłona plastikowa z kołkami mocującymi - czyli to, co widać na zdjęciach.

Specyfikacja producenta:

The RAID controller features include:
- Wide Ultra320 LVD SCSI performance of up to 320 MB/s
- Support for 256 MB (DDR2) memory
- 64-bit/66 MHz peripheral component interconnect (PCI) host interface for PERC 4/Di/Si
- PCI Express x8 host interface for PERC 4e/Di/Si
- RAID levels 0 (striping), 1 (mirroring), 5 (distributed parity), 10 (combination of striping and mirroring), and 50 (combination of striping and distributed parity)
- Advanced array configuration and management utilities
- Ability to boot from any array
- One electrical bus: a LVD bus.

Host data transfer rate: 2 - 4 GB/sec, depending on the system
Drive data transfer rate: Up to 320 MB/sec
Stripe sizes: 8 KB, 16 KB, 32 KB, 64 KB, or 128 KB
Maximum number of concurrent commands: 189
Support for multiple initiators: Yes

Support for SMART: Yes
Drive failure detection: Automatic
Drive rebuild using hot spares: Automatic
Parity generation and checking: Yes
Battery backup for NVRAM to protect configuration data: Yes
Hot-swap manual replacement of a disk unit without bringing the system down: Yes

Processor: Intel® IOP332 I/O processor with Intel XScale Technology
Bus type: PCI Express Rev. 1.0a
PCI Express controller: Intel i303
Bus data transfer rate: Up to 4 GB/sec
BIOS: PERC 4e/Di and 4e/Si BIOS
Cache memory size: 256 MB (DDR2)
Cache function: Write-back, Write-through, Adaptive read-ahead, Non read-ahead, Read-ahead
Firmware: 4 MB × 16 flash ROM
Nonvolatile random access memory (RAM): 32 KB × 8 for storing RAID configuration
SCSI data transfer rate: Up to 320 MB/sec per channel
SCSI bus: LVD
SCSI termination: Active
Termination disable: Automatic through cable and device detection
Devices per SCSI channel: Up to 15 wide or seven narrow SCSI devices
SCSI device types: Synchronous or asynchronous
RAID levels supported: 0, 1, 5, 10, and 50
Multiple logical drives/arrays per controller: Up to 40 logical drives per controller
Online capacity expansion: Yes
Dedicated and pool hot spare: Yes
Flashable firmware: Yes
Hot swap devices supported: Yes
Non-disk devices supported: Yes
Mixed capacity hard drives: Yes
