Kontroler raid Adaptec AAR-2420SA

26-09-2014, 9:08
Aukcja w czasie sprawdzania była zakończona.
Cena kup teraz: 129 zł      Aktualna cena: 99 zł
Użytkownik lucasek
numer aukcji: 4599884242
Miejscowość Biała Podlaska
Wyświetleń: 21
Koniec: 26-09-2014, 8:29

Dodatkowe informacje:
Stan: Używany
Waga (z opakowaniem): 1.00 [kg]

info Niektóre dane mogą być zasłonięte. Żeby je odsłonić przepisz token po prawej stronie. captcha

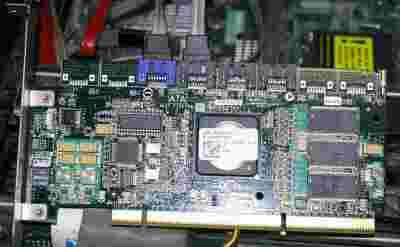

Kontroler RAID Adaptec AAR-2420SA.

Kontroler jest sprawny, był używany kilka lat w serwerze TYAN.

Supported Operating Systems
Microsoft Windows
Red Hat Linux
SUSE Linux
FreeBSD
Novell Netware
Solaris
SCO UnixWare, OpenServer

For a detailed list see ASK Answer ID 14204
Benefits
High-performance storage connectivity and data protection for servers and workstations
Customer Needs
Ideal for supporting server and workgroup applications where high levels of sustained read and write operations are required, such as video streaming, web content, video-on-demand, security and surveillance, fixed content, and reference data storage.
System Environment
Departmental and workgroup servers and workstations
Capacity

Max. physical disk drive size: 1TB

Key RAID Features
Hot spares, RAID Level Migration, Online Capacity Expansion, Optimized Disk Utilization, S.M.A.R.T and SNMP support as well as the features from the Adaptec Advanced Data Protection Suite including:
  • Striped Mirror (RAID 1E)
  • Hot Space (RAID 5EE)
  • Dual Drive Failure Protection (RAID 6)
  • Copyback Hot Spare

Bus System Interface Type

PCI-X 64-bit/133 MHz host interface (3.3v only)
Internal Connectors
4 locking SATA connectors
Data Transfer Rate
Up to 3 Gb/s per port
System Requirements
Intel or AMD architecture with available 64-bit 3.3v PCI-X slot
Supports EM64T and AMD64 architectures
Package Contents
  • Adaptec Serial ATA II RAID 2420SA card
  • Four 1-meter Serial ATA cables
  • Standard full size bracket
        - Low-profile bracket also included
  • Quick Install Guide
  • RAID Installation CD (bootable) including drivers and documentation
  • Adaptec Storage Manager™ Installation CD including management software and documentation
Warranty
3 years

Standard RAID levels

RAID 0, 1, 5, 10, and JBOD

Optional RAID Features

Snapshot Backup ([zasłonięte]22282)

Board Dimensions

3.1in H x 6.6in L
7.87cm H x 16.76cm L

Operating Temperature

0 to 55 degrees C

Regulatory Certification

FCC, UL, C-tick, CE, VCC

Accessories

Adaptec Battery Module ABM-500 ([zasłonięte]22137-R)
