ICP Vortex GDT8546RZ ZCR SATA RAID

ICP Vortex GDT8546RZ ZCR SATA RAID

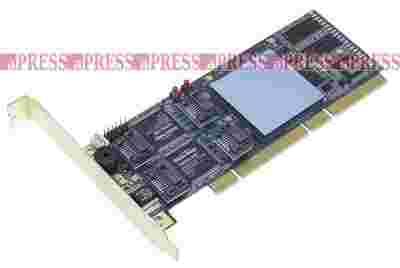

The GDT8546RZ is a 4-channel PCI RAID controller offering the option of connecting up to four Serial ATA drives. Parallel ATA (IDE) disk drives can be linked with an optional accessory.

The controller is based on the Serial AT Attachment (SATA) technology, satisfying the demands for inexpensive entry level RAID solutions. Its compact construction allows GDT8546RZ to be used in low profile systems.

The controller is not only suitable for high density and/or entry-level rack mount servers, but also for high-end desktops and workstations.

Key Features

Supports RAID 0, 1, 4, 5 and 10

Integrated 128MB PC133 ECC SDRAM

Hot Plug, Auto Hot Plug with SAF-TE support

Supports four internal independent SATA 1.0 channels

Data transfer rate up to 150MB/sec. per channel

64-bit/66MHz PCI bus interface

Private or Pool Hot Fix drives

Hardware RAID is totally independent of the host and operating system

Integrated, acoustic alarm
