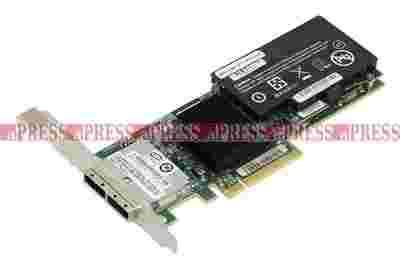

SAS/SATA CONTROLLER

PCI Express x8, Li-Ion battery backup

Specifications

The ServeRAID MR10M has the following specifications:

MD2 form factor card (2U low-profile height)

Two SFF-8088 SAS x4 external connectors

PCI Express x8 host interface

SAS Controller: LSI 1078e

3 Gbps per port data transfer rate

Supports SAS 3 Gbps and SATA 2

256 MB cache

Li-Ion battery backup

Maximum stripe size: 1024 KB

RAID levels: RAID 0, 1, 5, 6, 10, 50, and 60

Operating environment

The ServeRAID-MR10M SAS/SATA Controller is supported in the following environment:

Temperature:

At 0 - 1000 m (0 - 3000 ft): 10 - 35° C (50 - 95° F)

At 1000 - 2100 m (3000 - 7000 ft): 10 - 32° C (50 - 90° F)

Relative humidity: 20 - 80% (non-condensing)
