| Charakterystyka produktu |
| Brand |
Kenwood |
| Model |

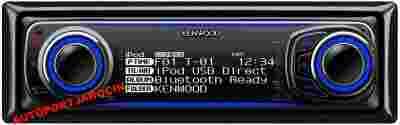

KDC-W7044U
|
| Type |
Radio , CD , MP3 player , digital player |
| Form factor |
Full-DIN - In-dash unit |
| Amplifier |
| Output channels |
4 |
| Max. power per channel [Watt] |
50 Watt |
| iPod compatible |
yes |
| Equalizer |
yes |
| Digital audio standard |
| Supported standards |
WMA , AAC , MP3 |
| ID3 Tag Support |
yes |
| RDS |
yes |
| Removable faceplate |
yes |
| Radio |
| Broadcast frequencies |
FM , MW , LW |
| Dimensions ( W x H x D) [cm] |
18.2 x 5.3 x 15.5 cm |
| Weight [Kg] |
1.4 Kg |
| Casing color |
Black |
| Faceplate Type |
Removable |
| Connector type |
1 x USB ( USB Type A 4-pin ), 1 x audio input ( mini-headphone stereo 3.5 mm ), 2 x output audio ( Phono RCA x 2 ), 1 x bus system components control |
| Wyswietlacz |
| Display type |
LCD |
| Display controls |
Volume, fade, balance, loudness, reduction |
| System audio |
| Audio output mode |
Stereo |
| Equalizer |
yes |
| Response bandwidth [Hz] |
20 Hz |
| Audio effects |
System Q |
| Amplifier max output power / channel qty |
50 Watt x 4 |
| Amplifier max output power / channel qty |
30 watt x 4 |
| Crossover |
Active crossover |
| Crossover low pass frequencies [Hz] |
90 Hz, 60 Hz, 40 Hz, 30 Hz, 220 Hz, 70 Hz, 50 Hz, 80 Hz, 120 Hz, 180 Hz, 150 Hz, 250 Hz, 100 Hz |
| Crossover high pass frequencies [Hz] |
90 Hz, 60 Hz, 40 Hz, 30 Hz, 220 Hz, 70 Hz, 50 Hz, 80 Hz, 120 Hz, 180 Hz, 150 Hz, 250 Hz, 100 Hz |
| Phase selector |
yes |
| System control bus |
5L-Bus |
| Remote control |
Optional |
| Korektor |
| Equalizer type |
digital graphics |
| Equalizer pre-selections |
Natural, Easy, Top40, Lot, Rock, Jazz, Pops |
| Number of equalizer pre-selections |
7 |
| Number of equalizer bands |
5 |
| Equalizer user preset qty |
1 |
| Equalizer boost/cut range |
± 9 dB |
| Equalizer center frequencies [Hz] |
60 Hz, 250 Hz, 1000 Hz, 4000 Hz, 16000 Hz |
| Odtwarzacz cyfrowy |
| Device type |
Digital player |
| Features |
USB flash drive playback |
| Supported digital audio standards |
WMA, AAC, MP3 |
| Radio |
| Type |
Radio - FM/MW/LW |
| AM station preset qty |
6 |
| FM station preset qty |
18 |
| Station preset qty |
24 |
| Signal-to-noise ratio [dB] |
65 dB |
| Response bandwidth [Hz] |
30 - 15000 Hz |
| Display |
LCD |
| Supported RDS functions |
EON, CT, AF, PI, PTY, PS, RT |
| Additional features |
, Auto Store (AS) |
| System CD |
| Type |
CD / MP3 player |
| Media load type |
Slot-load |
| Supported digital audio standards |
WMA, AAC, MP3 |
| Playback modes |
Intro scan, Repeat directory, Random play, single track repeat |
| CD-R compatible |
yes |
| CD-RW compatible |
yes |
| Total harmonic distortion [%] |
0.008 % |
| Signal-to-noise ratio [dB] |
105 dB |
| Dynamic range [dB] |
93 dB |
| MP3 |
yes |
| Response bandwidth [Hz] |
10 - 20000 Hz |
