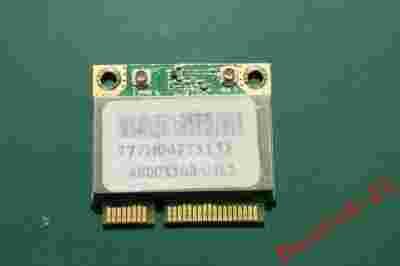

Karta WIFI T77H[zasłonięte]04771 ATHEROS 802.11 b/g/n

Oryginalna. Sprawna i sprawdzona na 100%. Stan bardzo dobry. Używana.

Pochodzi z demontażu laptopa ACER ASPIRE 5532.

SPECYFIKACJA:

MODEL: ATHEROS AR5B93

INTERFEJS: Mini PCI-E

WLAN STANDARD: 802.11b / 802.11g / 802.11n

SZYBKOŚĆ TRANSMISJI: 54/150/300 Mbps

Atheros AR5B93 WiFi Wireless Half Mini PCI-E Card 300Mbp
Atheros AR5B93
Chip 1: Atheros AR9283

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n draft 2.0

Description:

Single-chip, single-band (2.4GHz) for PCIe in XSPAN's third generation of products, integrated and compact 802.11n solution for singleband PCIe on the

market, featuring a half-Mini Card form factor that is 30% smaller than the nearest competitive 11n.

It offers the optimal balance of performance and power with its single-band, 1x2 MIMO configuration which features downshift to 1x1 MIMO with Dynamic MIMO

Power Save.

NOTE: Not for IBM Lenovo ThinkPad and some HP models (Firmware Required).

Features:

* Single-chip, 802.11n draft compliant wireless LAN client solution with integrated MAC, baseband and 2.4 GHz radios
* Based on third-generation 802.11n draft compliant technology
* Support for 1x2 MIMO
* Conserves power with 1x1 downshift using Dynamic MIMO Power Save
* Enables PHY rate of up to 300 Mbps on downlink
* Compliant with IEEE 802.11b, 802.11g, 802.11d, 802.11e, 802.11i, and draft 802.11n
* Lead-free RoHS compliant


Specifications:

Compact Half-Mini Card form factor.
Frequency Band 2.4 GHz
Network Standard 802.11b, 802.11g, 802.11n
Modulation Technology OFDM with BPSK, QPSK, 16 QAM,
64 QAM; DBPSK, DQPSK, CCK
FEC Coding Rate 1/2, 2/3, 3/4, 5/6
Hardware Encryption AES, TKIP, WEP
Quality of Service 802.11e
Communication Interface PCI-Express
Peripheral Interface GPIOs, LEDs
Memory Interface EEPROM
Supported Data Rates
IEEE 802.11b 1 - 11 Mbps
IEEE 802.11g 6 - 54 Mbps
IEEE 802.11n 6.5 - 300 Mbps

Dell Latitude E4200/E4300/ E5400 /E5500 /E6400 / E6500 Notebook
Compatible computers:
Latitude 2100
Latitude E4200
Latitude E4300
Latitude E5400
Latitude E5500
Latitude E6400
Latitude E6400 ATG
Latitude E6400 XFR
Latitude E6500
Latitude XT2
Latitude XT2_XFR
Dell Precision Mobile WorkStation M2400
Dell Precision Mobile WorkStation M4400
Dell Precision Mobile WorkStation M6400
Dell Precision Mobile WorkStation M6500
Dell PRECISION M2400/M4400/ M6400 Notebook
DELL Studio 1535/ 1536 / 1537 /1735 Notebook
Dell Studio 15/17 Notebook
Dell Vostro 1310 /1710 /2510 Notebook

Gateway advertises:
Gateway EC34

Acer
Additional information:
Included: Card only , drivers available at HP,Dell,Toshiba,and atheros web sites.
Product Requirements:
Available Half size Mini PCI Express slot

Gwarancja rozruchowa wynosi 14 dni.

Wszystkie sprzedawane przez nas produkty są dostępne od ręki. Wysyłka w dniu wpłynięcia zapłaty na konto.
