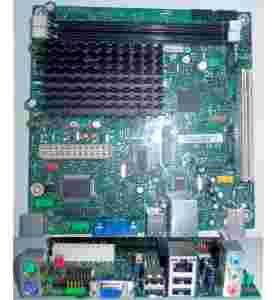

INTEL D510MO

Form Factor Mini-ITX

Processor Passively-cooled, soldered-down dual-core Intel® Atom 2X1.66 processor with

integrated graphics and memory controllers

Main Memory • Two 240-pin Double Data Rate 2 (DDR2) Dual Inline Memory Module

(DIMM) sockets with gold-plated contacts

• Support for DDR2 800 MHz and DDR2 667 MHz DIMMs

• Support for up to 4 GB total system memory (2 GB per DIMM

socket)

Chipset Intel® NM10 Express Chipset

Integrated

Graphics

Intel® Graphics Media Accelerator 3150 (Intel® GMA 3150) integrated

graphics subsystem with support for analog displays (VGA)

Audio RealTek* ALC662 audio codec for 5.1 (6-channel) Intel® High

Definition Audio (Intel® HD Audio) and AC ’97 Audio. Included are:

• Back panel connectors

• Front panel microphone/headphone header with support for

Intel® HD Audio or AC ’97 Audio

• S/PDIF digital audio header

Expansion

Capabilities

One PCI* bus add-in card connector

One PCI Express* Full-Mini Card slot

Peripheral

Interfaces

• Seven USB 2.0 ports:

― Four back panel ports

― Three front panel ports (via two internal headers; one header

supports an Intel® Z-U130 USB Solid-State Drive (or compatible

device)

• Two Serial ATA (SATA) 3.0 Gb/s connectors (supporting IDE and

ACHI)

PŁYTA SPRAWNA!!

INSTALOWANY SYSTEM - STEROWNIKI!!

BRAK BLASZKI-MASKOWNICY

Płatność przez Allegro

lub przelew na konto 91 1140 [zasłonięte] 2[zasłonięte]0040002 [zasłonięte] 450890
