IBM ServeRAID M1015 SAS/SATA Controller P141

15-07-2014, 11:18
Aukcja w czasie sprawdzania była zakończona.
Cena kup teraz: 470 zł
Użytkownik kscpolska
numer aukcji: 4404261319
Miejscowość Strzelce Krajeńskie
Wyświetleń: 10
Koniec: 15-07-2014, 10:30

Dodatkowe informacje:
Stan: Używany
info Niektóre dane mogą być zasłonięte. Żeby je odsłonić przepisz token po prawej stronie. captcha

E-mail Wyślij wiadomość
Tel.kom. 732[zasłonięte]424
Tel.kom. 537[zasłonięte]704

Moje komentarze
Inne aukcje
Dodaj do ulubionych
Strona "O mnie"

Kurier 17 zł
Kurier pobranie 21 zł
Odbiór osobisty 0 zł

Numer 67 2490 [zasłonięte] 0[zasłonięte]0050000 [zasłonięte] 898386
Bank Alior Bank

Witam na naszej aukcji.
Przedmiotem aukcji jest:
IBM ServeRAID M1015 SAS/SATA Controller

Abstract

The ServeRAID M1015 SAS/SATA Controller for IBM System x is an entry-level 6 Gbps SAS 2.0 PCI Express 2.0 RAID controller. The adapter has two internal mini-SAS connectors to drive up to 16 devices and supports the same base RAID 0, 1, and 10 feature set and drivers as the M5000 series controllers. With the attachment of the ServeRAID M1000 Advanced Feature Key, the ServeRAID M1015 offers the option of RAID 5 and SED Encryption Key management, while still being sensitive to administrator cost concerns in an entry-level RAID environment.

Contents


The ServeRAID M1015 SAS/SATA Controller for IBM System x is an entry-level 6 Gbps SAS 2.0 PCI Express 2.0 RAID controller. The adapter has two internal mini-SAS connectors to drive up to 16 devices and supports the same base RAID 0, 1, and 10 feature set and drivers as the M5000 series controllers. With the attachment of the ServeRAID M1000 Advanced Feature Key, the ServeRAID M1015 offers the option of RAID 5 and SED Encryption Key management, while still being sensitive to administrator cost concerns in an entry-level RAID environment. This RAID controller provides connectivity to internal direct-attach or expander-attached hard disk, solid-state, or self-encrypting drives.

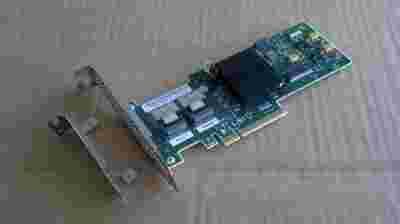

Figure 1. ServeRAID M1015 SAS/SATA Controller
Specifications:The ServeRAID M1015 SAS/SATA Controller has the following specifications: - Eight internal 6 Gbps SAS/SATA ports - Supports SAS and SATA drives (but not in the same RAID volume) - Two Mini-SAS internal connectors (SFF-8087) - 6 Gbps throughput per port - LSI SAS2008 6 Gbps RAID on Chip (ROC) controller - x8 PCI Express 2.0 host interface - Supports RAID levels 0, 1, 10 (RAID levels 5 and 50 with optional ServeRAID M1000 Series Advanced Feature Key) - Connects to up to 16 SAS or SATA drives - Supports up to 16 logical volumes - Supports LUN sizes up to 64 TB - Configurable stripe size up to 64 KB - Compliant with Disk Data Format (DDF) configuration on disk (COD) - S.M.A.R.T. support
Zestaw zawiera:
-IBM ServeRAID M1015 SAS/SATA Controller
- wspornik niskoprofilowy
- instrukcja
- Driver CD
Sprzęt powystawowy w pełni sprawny.
Udzielamy gwarancji 3 miesiące.
Zachęcamy do obejrzenia innych naszych aukcji :)
