• Support for Ultra160 SCSI data transfer rates — up to 160 MB/s
• Support for RAID levels 0, 1, 1E, 5, 5E, 00, 10, 1E0, and 50
  • RAID levels 1E, 1E0 and 5E are IBM exclusives
• Up to 14 HDDs supported per channel
• ServeRAID Manager RAID Configuration and Monitoring Software for powerful, easy-to-use RAID management across your storage assets
• Support for Active PCI (hot-swap and hot-add of controllers) for Windows NT, Windows 2000, and NetWare environments
• Support for adapter failover in Windows NT environments
• Support for clustering with Microsoft Cluster Services and NetWare High-Availability Services

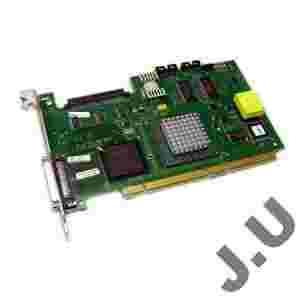

ServeRAID-4Lx Ultra160 SCSI Controller:

• Up to 66 MHz PCI bus speed
• 64-bit, half-length PCI adapter card
• One VHDCI .8-mm external connector
• One internal, industry-standard, 68-pin connector
• One RAID channel
• Supports Ultra160 SCSI (160 MB/s)

The above Ultra160 SCSI controllers are backward compatible with legacy SCSI modes:

• Wide Ultra2 SCSI (80 MB/s)
• Wide Ultra SCSI (40 MB/s)
• Fast/Wide SCSI (20 MB/s)





                   Machine     ServeRAID    ServeRAID

Description         Type           -4Lx         -4Mx



xSeries 200         8478           Yes          Yes

xSeries 220         8645           Yes          Yes

xSeries 230         8658           Yes          Yes

xSeries 240         8664(3)        Yes          Yes

xSeries 250         8665(3)        Yes          Yes

xSeries 300         8672           Yes          Yes

xSeries 330         8654(4)        Yes          Yes

xSeries 340         8656           Yes          Yes

xSeries 350         8682(3)        Yes          Yes

xSeries 370         8681(3)        Yes          Yes

Netfinity 4500R     8656           Yes          Yes

Netfinity 5000      8659           Yes          Yes

Netfinity 5100      8658           Yes          Yes

Netfinity 5600      8664(3)        Yes          Yes

Netfinity 6000R     8682(3)        Yes          Yes

Netfinity 7100      8666(3)        Yes          Yes
