| Item name |

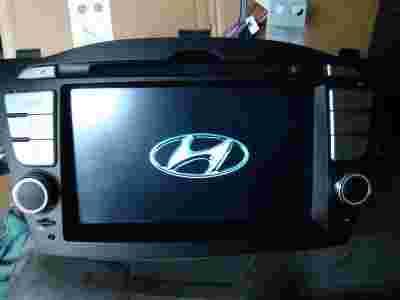

7" HD Car DVD Player with GPS/I-POD/USB/SD/Blue tooth for Hyundai IX35 |
| Model No. |
HDX-735GD |
| Car Model |
For Hyundai IX35 |
| 2.0L no need can bus wire |
| 2.4L need can bus wire |
| Screen Size |
7 inch |
| High Resolution |
800*480pixes |
| Compatible with |
DVD/DVD-R/VCD/CD/CD-R/CD-RW/DivX player |
| Backlight |
With Red illumination |
| Built in GPS Navigation |
Support TOMTOM, IGO8,Route66 ect. |
| Picture in picuture |
can watch DVD while in blue tooth/I-POD mode |
| Dual Zone function |
Listen to music while gps navigation |
| Analog TV |
Built in |
| Blue tooth |
support A2DP |
| Radio |
FM/AM |
| USB port |
with USB cable (for Music/movie) |
| SD Card slot |
1 slot is for Music/movie, 1 slot is for GPS |
| Amplifier |
4*45 Watts |
| Can bus |
Built in Can bus to support original onboard computer |
| Video output |
2 way |
| Video input |
1 way |
| Audio output |
3 way |
| Audio input |
2 way |
| Camera input |
Auto rear viewing function |
| Audio Section: |
| 1) Rated Output |
4ch*3W |
| 2) Maximum Power Output |
4ch*50W |
| 3) Rated Speaker Impedance |
4 |
| 4) Pre-AMP Output Voltage |
2Vrms |
| 5) Pre-AMP Output Impedance |
<220 |
| 7) Video |
1 Vp-p(75) |
| 8) Audio |
500mVrms |
| Monitor Section: |
| 1) Picture Size |
7 inche wide144(w)*80(H)mm |
| 2) Display System |
TFT LCD panel |
| 3) Number of pixels |
336.960 pixels(1200H*234V*RGB) |
| 4) Video System |
PAL / NTSC |
| FM Stereo Radio Section: |
| 1) U.S.Standard |
87.9-107.9MHz |
| 2) Outside U.S |
87.5-108.0MHz |
| 3) Usable Sensitivity |
5dBV(S/N=30dB) |
| 4) S/N ratio |
>60dB |
| TV Tuner Section: |
| 1) Colour System |
NTSC, PAL-B/G, PAL-I, PAL-D/K,PAL-M,PAL-N |
| 2) Channel Selection System |
PLL Frequency Synthesizer System |
| 3) Usable Sensitivity |
41dBuV |
| GPS Specification: |
| Operation system |
Windows CE 6.0 |
| Support map |
Tomtom, IGO , Route66 ect. |
| CPU |
Intel PXA255 Processor |
| Main Frequency |
400MHZ |
| SDRAM/FLASH |
1GB/64 MB |
| time of hot boot |
19S |
| Orientation presicion |
<15m |
| Refurbish frequency |
1HZ |
| GPS antenna frequency |
1575.52MHZ |
| Length of antenna |
5M |
| Voice indication |
Intellectualized voice indication function |
| EMS Memory |
64MB SDRAM |
| Storage device |
128MB. |
| Display output |
CVBS+S-VIDEO output. (Resolution:800*480) |
| Audio output |
Stereo CD Qaulity. |
| Support Audio type |
MP3/PCM/WMA |
| Support Video Type |
ASF/AVI /WMV /DIVX |
| Chipset |
SiRF STAR III |
| Frequency |
1.575GHZ |
| Channel number |
20 channels |
| Tracking sense degree |
-159dbm |
| Position Accuracy |
10m, 2D RMS 5m, 2D RMS, WAAS enable. |
| Power Speci |
DC12V,Current<500mA |
| Consumption |
4.5W(12V/360mA),Normal power consumption 3W(12V/250mA). |
| Optional |
DVB-T |
| Package: |
1 x Multimedia DVD Player |
| 1 x User Manual ( english ) |
| 1 x GPS antenna ( GPS function ) |
| 1 x I-Pod wire ( I-POD function ) |
| 1 x USB wire ( USB function ) |
| 1 x can bus wire |
| 1 x Remote control |
|
1 x Install tool
