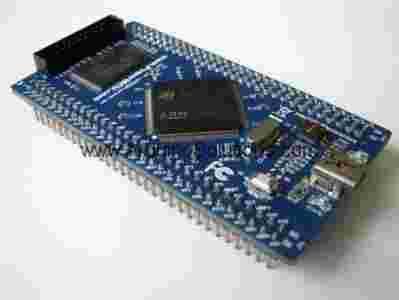

HY-STM32F2xxCore144 Moduł z STM32F207ZGT6 SRAM, NAND FLASH
The HY-STM32F2xxCore144 is an easy-to-use MCU core board designed for rapid application. At the core board has a very powerful ST Microelectronics STM32F207ZG Micorocontroller, with the high-performance, high-speed 32-bit ARM Cortex M3 core processor, running at 120 MHz(150DMIPS) with 1MB flash and 128 KB RAM. A comprehensive firmware library and plenty of sample code help you get your program up and running quickly. The HY-STM32F2xxCore144 core board has a double 60-pin DIP with 2.54mm-pitch male header pins already soldered in,so it can be used with standard solderless breadboards and perfboards. All microcontroller ports are available on extension connectors.
● CPU: STM32F207ZGT6 frequency up to 120 MHz、1MB flash、128KB RAM Ethernet, USB OTG, USB2.0 high speed,CAMERA, FSMC, SPI, 3xI2C, 6xUSART, 2xCAN, 112xfast GPIOs, PWM, 3xADC 12bit, 2xDAC 12bit, DMA ● 25 Mhz main crystal oscillator, 32768 Hz RTC crystal ● USB connector ● RESET button ● Boot select switch ● status LED,On-board LEDs can be used for feedback ● power supply LED ● standard ARM JTAG 20PIN 2.0mm Debug port,JTAG/SWD mode (largess 2.54mm to 2.0mm JTAG conversion board) ● on board voltage regulator 3.3V with up to 800mA current ● on board extension 1MB to 8MB PSRAM or SRAM(default 1MB SRAM),128MB NAND FLASH, NOR FLASH(reserve) ● double 60-pin DIP header pins,extension headers for all ports ● Can be powered by USB or an external 5V supply ● Compact module: 85 mm × 46 mm ● Easy to Install and Remove ● Easy-to-use, uses the ARM RealView compile engine,API-driven development using libraries with intuitive interfaces
Schemat
HY-STM32F2xxCore144_UserManual
