Witam Wszystkich Serdecznie !!!

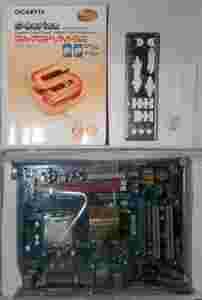

Przedmiotem aukcji jest używany zestaw,płyta główna Gigabyte GA-73PVM-S2 rev.1.0 (z zintegrowanym układem graficznym NVIDIA GeForce 7100/nforce630i) z procesorem INTEL Core2Duo E6600 2x2,4GHz L2 cache 4MB FSB 1066MHz +maskownica portów, instrukcja, płyta CD (instrukcja w PDFie/sterowniki).Stan wizualny taki, jak na fotkach, pod względem technicznym sprzęt w pełni sprawny, aktualizowany BIOS ze strony producenta sprzętu,  ZESTAW TESTOWANY.

Specyfikacja płyty głównej GA-73PVM-S2 rev.1.0

1. Support for an Intel^® Core™ 2 Extreme processor/Intel^® Core™ 2 Quad processor/Intel^® Core™ 2 Duo processor/ Intel^® Pentium^® processor Extreme Edition/ Intel^® Pentium^® D processor/ Intel^® Pentium^® 4 processor Extreme Edition/ Intel^® Pentium^® 4processor/Intel^® Celeron^® processor in the LGA 775 package

1. 1333/1066/800 MHz FSB

1. 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory
2. Support for DDR2 800/667/533 MHz memory modules

1. Integrated in the NVIDIA^® GeForce 7100/nForce 630i chipset

1. Realtek ALC662 codec
2. High Definition Audio
3. 2/4/5.1-channel
4. Support for S/PDIF Out
5. Support for CD In

1. RTL 8211B chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot
2. 1 x PCI Express x1 slot
3. 2 x PCI slots

1. 4 x SATA 3Gb/s connectors supporting up to 3 SATA 3Gb/s devices
2. Support for SATA RAID 0, RAID 1, RAID 5, and RAID 0+1
3. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

1. Integrated in the NVIDIA^® GeForce 7100/nForce 630i chipset
2. Up to 10 USB 2.0/1.1 ports (6 on the back panel, 4 via the USB brackets connected to the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 4 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF Out header
12. 2 x USB 2.0/1.1 headers
13. 1 x serial port header
14. 1 x chassis intrusion header
15. 1 x power LED header

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x parallel port
4. 1 x DVI-D port (Note 1)
5. 1 xD-sub port
6. 6 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In/Line Out/Microphone)

1. iTE IT8718 chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control (Note 2)

1. 1 x 4 Mbit flash
2. Use of licensed AWARD BIOS
3. PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b

1. Support for @BIOS
2. Support for Download Center
3. Support for Q-Flash
4. Support for EasyTune (Note 3)
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for Virtual Dual BIOS

1. Support for Microsoft^® Windows Vista/XP

1. Micro ATX Form Factor; 24.4cm x 19.4cm

Wydajność zintegrowanego układu graficznego w benchmarkach
