Dane Techniczne

Standards

• ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-PLDA, FC-SP, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)
• PCI-X 2.0 and PCI 3.0
• Fibre Channel class 2 and 3
• PHP hot plug-hot swap

Architecture

• Single-channel
• 4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
• Integrated data buffer and code space memory

Comprehensive OS Support

• Windows, Linux, NetWare, Solaris, VMware, HP-UX
• Additional support is available from OEMs and partners
• View OS versions and available drivers

Hardware Environments

• x86, x64, and Intel® Itanium® processor family
• SPARC and PowerPC PCI hardware platforms
• 32/64-bit 33/66MHz PCI (3.3 signaling)
• 66/100/133/266MHz PCI-X bus speeds

Optical

• Data rates: 1.0625, 2.125 and 4.25Gb/s (auto-detected)
• Optics: Short wave lasers with LC type connector
• Cable: 50/125 microns, up to 150 meters at 4Gb/s
  62.5/125 microns, up to 70 meters at 4Gb/s

Physical Dimensions

• Short, low profile MD2 form factor card
• 167.64mm x 64.42mm (6.60" x 2.54")
• Standard bracket (low profile available)

Power & Environmental Requirements

• Volts: +3.3 and 5 VDC
• Operating temperature: 0° to 55°C (32° to 131°F)
• Airflow required: 100 lf/m
• Storage temperature: -40° to 70°C (-40° to 158°F)
• Relative humidity: 5% to 95% non-condensing

Agency Approvals

• Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1
• UL recognized to UL 60950-1
• CUR recognized to CSA22.2, No. 60950-1-03
• TUV certified to EN60950-1
• FCC rules, Part 15, Class A
• ICES-003, Class A
• EMC Directive 2004/108/EEC (CE Mark)
  • EN55022, Class A
  • EN55024
• Australian EMC Framework (C-Tick Mark)
  • AS/NZS CISPR22, Class A
• VCCI, Class A
• MIC (Korea), Class A
• BSMI (Taiwan), Class A
• RoHS Compliant (Directive 2002/95/EC) for environmental requirements

Unparalleled manageability, reliability, performance and ease of deployment

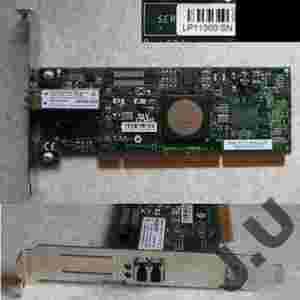

Streamlined installation and management, unrivaled scalability, and industry-leading virtualization support make the single-channel Emulex LightPulse LP11000 an ideal solution for enterprise and mixed-OS SAN environments. With powerful management tools and broad platform support, they deliver maximum performance in the broadest range of applications and environments.

Proven design, architecture and interface

LightPulse HBAs' highly integrated single chip design minimizes onboard components, while advanced error-checking methods assure robust data integrity. The Emulex firmware-based architecture enables feature and performance upgrades without costly hardware changes. The unique Service Level Interface (SLI™) allows use of a common driver across all models of Emulex HBAs. Installation and management applications are designed to minimize reboots and further simplify deployment.

Key features

• Exceptional performance and full-duplex data throughput
• Comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV)
• Simplified installation and configuration using common HBA drivers and AutoPilot Installer®
• Efficient administration via Emulex OneCommand™ Manager for HBAs anywhere in the SAN
• Common driver model eases management and enables upgrades independent of HBA firmware

Key benefits

• Superior quality and reliability ensure data availability
• Highly efficient installation accelerates deployment and reduces administration costs
• Maximum SAN performance increases scalability and user satisfaction in large enterprise installations
• Robust interoperability simplifies deployment and upgrades of SAN hardware and software
• LightPulse Virtual HBA technology provides efficient host utilization and compliance with SAN management best practices
• Advanced security protects the SAN from potential threats such as WWN spoofing, host masquerading, rogue/compromised servers and administrator errors

Additional Features

• Emulex LightPulse technology features Frame-level Multiplexing and out-of-order frame reassembly for maximum link utilization.
• End-to-end data protection with hardware parity, CRC, ECC and other advanced error checking and correcting ensure that data is safe from corruption.
• Detailed real-time event logging and tracing enables quick diagnosis of SAN problems.
• Universal Boot capability allows the appropriate boot environment to be automatically selected for any given OS.
• Strong authentication between host and fabric is based on full Fibre Channel Security Protocol (FC-SP) Diffie-Helmann Challenge Handshake Authentication Protocol (DH-CHAP) compliance.
