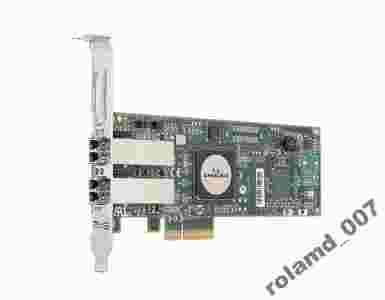

Emulex LPe11002 Dual Port 4Gb Fibre Channel x4 PCIe HBA Adapter

Standards

• ANSI Fibre Channel: FC-PH-3, FC-PI-2, FC-FS, FC-AL-2, FC-GS-4, FC-FLA, FC-SP, FC-PLDA, FC-TAPE, FCP-2, and RFC 2625 (IP over FC)

• PCI Express base spec 1.0a
• PCI Express card electromechanical spec 1.0a
• Fibre Channel class 2 and 3
• PHP hot plug-hot swap

Architecture

• Dual-channel

• 4Gb/s, 2Gb/s or 1Gb/s FC Link speeds automatically detected
• Integrated data buffer and code space memory

Comprehensive OS Support

• Windows, Linux, NetWare, Solaris, VMware, HP-UX
• Additional support is available from OEMs and partners

Hardware Environments

• PowerPC®, SPARC®, x86, x64 and Intel® Itanium® 64-bit processor family

Optical

• Data rates: 1.0625, 2.125 and 4.25Gb/s (auto-detected)

• Optics: Short wave lasers with LC type connector
• Cable: 50/125μm, up to 150 meters at 4Gb/s 62.5/125μm, up to 70 meters at 4Gb/s

Physical Dimensions

• 167.64mm x 64.42mm (6.60" x 2.54")
• Standard bracket

Power & Environmental Requirements

• Volts: +3.3
• Operating temperature: 0° to 55°C (32° to 131°F)
• Airflow required: 100 lf/m
• Storage temperature: -40° to 70°C (-40° to 158°F)
• Relative humidity: 5% to 95% non-condensing

Agency Approvals

• Class 1 Laser Product per DHHS 21CFR (J) and EN60825-1

• UL recognized to UL 60950-1
• CUR recognized to CSA22.2, No. 60950-1-03
• TUV certified to EN60950-1
• FCC rules, Part 15, Class A
• ICES-003, Class A
• EMC Directive 2004/108/EEC (CE Mark)
  • EN55022, Class A
  • EN55024
• Australian EMC Framework (C-Tick Mark)
  • AS/NZS CISPR22, Class A
• VCCI, Class A
• MIC (Korea), Class A
• BSMI (Taiwan), Class A
• RoHS Compliant (Directive 2002/95/EC) for environmental requirements

Additional Features

• Emulex LightPulse technology features Frame-level Multiplexing and out-of-order frame reassembly for maximum link utilization.
• End-to-end data protection with hardware parity, CRC, ECC and other advanced error checking and correcting ensure that data is safe from corruption.
• Detailed real-time event logging and tracing enables quick diagnosis of SAN problems.
• Universal Boot capability allows the appropriate boot environment to be automatically selected for any given OS.
• Strong authentication between host and fabric is based on Fibre Channel Security Protocol (FC-SP) Diffie-Helmann Challenge Handshake Authentication Protocol (DH-CHAP).
