Przedmiotem aukcji jest plyta glowna

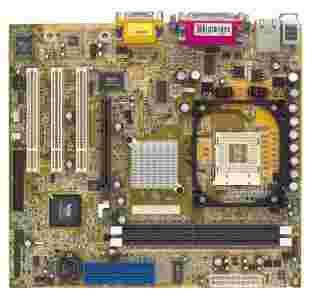

DFI PM12-TL

plyta obsluguje procesory na FSB 533/400

w komplecie tasmy ata i sterowniki
miesiac gwarancji od momentu wysylki

paragon fvat dla firm

Description:
CPU

Intel Pentium 4 processor
- 533MHz system data bus
- 400MHz system data bus
Intel Celeron processor
- 400MHz system data bus

CPU Socket

Socket 478

Chipset

VIA P4M266A/VT8235CD

Memory

Two 184-pin DDR DIMM sockets
Supports up to 2GB using PC1600 (DDR200) or PC2100
(DDR266) unbuffered DDR SDRAM DIMM, 2.5V type
Uses x8/x16 512MB technology

BIOS

Award BIOS, Windows 98/2000/ME/XP Plug and Play
compatible
Supports SCSI sequential boot-up
Flash EEPROM for easy BIOS upgrades
Supports DMI 2.0 function
2Mbit flash memory

Power Management

Supports ACPI specification and OS Directed Power
Management
Supports ACPI STR (Suspend to RAM) function
Wake-On-Events include:
- Wake-On-PS/2 Keyboard/Mouse
- Wake-On-USB Keyboard/Mouse
- Wake-On-Ring (internal or external modem)
- Wake-On-LAN
- RTC timer to power-on the system
System power management supported
CPU stopped clock control
Hardware supports SMI green mode
Microsoft/Intel APM 1.2 compliant
Soft Power supported - ACPI v1.0a specification
AC power failure recovery

Audio

AC97 compliant

LAN

Integrated LAN controller
Integrated IEEE 802.3, 10BASE-T and 100BASE-TX
compatible PHY

Graphics

Integrated Savage8 2D/3D graphics controller and video
accelerator

PCI IDE

ATA/33, ATA/66, ATA/100 and ATA/133 hard drives

AGP

AGP 4x/2x

Rear Panel I/O Ports

2 USB 2.0/1.1 ports
1 RJ45 LAN port
1 DB-9 serial port
1 DB-15 VGA port
1 DB-25 parallel port
1 mini-DIN-6 PS/2 mouse port
1 mini-DIN-6 PS/2 keyboard port
1 game/MIDI port
3 audio jacks: line-out, line-in and mic-in

I/O Connectors

1 connector for 2 additional external USB 2.0/1.1 ports
1 connector for 1 external serial port
1 connector for external line-out and mic-in jacks
2 internal audio connectors (AUX-in and CD-in)
1 connector for IrDA interface
2 IDE connectors
1 floppy connector
2 ATX power supply connectors
1 Wake-On-LAN connector
1 Wake-On-Ring connector
CPU fan and chassis fan connectors

Expansion Slots

1 AGP 4x slot
3 PCI slots

PCB

4 layers, microATX form factor
24.3cm (9.56") x 22cm (8.66")
