DFI K6BV3+ + AMD K6 400 GWARANCJA

22-01-2015, 0:37
Aukcja w czasie sprawdzania była zakończona.

Cena kup teraz: 89 zł

Użytkownik cybertycz

numer aukcji: 4985179816

Miejscowość Żórawina

Koniec: 22-01-2015, 0:36

Dodatkowe informacje:
Stan: Używany
Rodzaj procesora: AMD K6-2, K6-3
Zawartość zestawu: Płyta i procesor
Socket: Pozostałe AMD

:. PRZED ZAKUPEM PROSZĘ O ZAPOZNANIE SIĘ ZE STRONĄ "O MNIE" .:

Witam

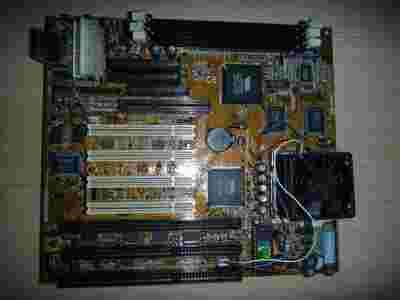

Oferuję płytę firmy DFI Z PROCESOREM AMD K6 400.

Opisywany sprzęt jest w stanie idealnym (wizualnym i technicznym) - pracuje cicho, stabilnie, bez zawieszeń. Testowany na Windows WIN XP.

Opis szczegółowy pod zdjęciami.

GWARANCJA - 14 DNI

SPRZĘT BĘDZIE BARDZO DOBRZE ZABEZPIECZONY NA CZAS TRANSPORTU.

WYSYŁKA NAJPÓŹNIEJ NASTĘPNEGO DNIA ROBOCZEGO PO OTRZYMANIU ZAPŁATY.

EDW

Features:
          • Supports latest AMD® K6-III processors
          • Optional 1 MB / 2 MB L2 or L3 cache on board
          • Accelerated Graphics Port (AGP) 2X support up to 533MB/sec. bandwidth for 3D graphics applications
          • Supports ACPI specification
          • Supports Modem Ring-On
          • RTC timer to power on the system
          • Hardware monitor
          • NSTL Y2K compliant

Specifications

Processors Supported
• AMD® K6-200/233/266/300, K6-2/250/266/ 300/333/350/366/380/400/450/475/500 or K6-III/400/450/475/500
• Intel® Pentium® processor with MMX™ technology-166/ 200/233MHz
• Cyrix®6x86MX-PR200/PR233/PR266 or M II-200/266/ 300/333/366/380/400
• IBM®6x86MX-PR200/PR233/PR266/PR300/PR333
• IDT®C6-200/225, WinChip2-200/225/233/266/300 or future WinChip3 series

Chipset
• VIA®MVP3 AGP system chipset

Cache Memory
• 1MB or 2MB pipeline burst, direct map write-through cache installed on the system board

System Memory
• 16MB to 768MB memory using unbuffered DIMMs
• Three 168-pin DIMM sockets using x64 SDRAM, 3.3V
• PC-100 SDRAM DIMM for 100MHz external system bus clock processors

BIOS
• Award BIOS, Windows®95/98 Plug and Play compatible
• Supports SCSI sequential boot-up
• Flash EPROM for easy BIOS upgrades
• Supports DMI function
• 1MB flash memory (2MB - optional, includes ACPI and SDMS functions)

Energy Efficient Design
• Supports ACPI specification and OS Directed Power Management (ATX power supply only)
• Wake-On-Events include: (ATX power supply only)
– RTC timer to power-on the system
– Modem ring-on
• System power management supported
• CPU stopped clock control
• Hardware supports SMI green mode
• Microsoft®/Intel®APM 1.2 compliant
• Soft Power supported - ACPI v1.0a specification (ATX power supply only)

Damage Free Intelligence
• Monitors processor temperature and overheat alarm
• Monitors 3.3V/5V/12V voltages and failure alarm
• Monitors processor/AGP fan speed and failure alarm
• Automatic processor fan control to save energy, prevent system overheat, prolong fan life and implement silent system
• Three types of sound for different failure alarm
• Read back capability that displays accurate temperature, voltage and fan speed

PCI IDE Interface
• Ultra DMA/66 supported (Synchronous DMA mode -data transfer rate up to a maximum of 66MB/sec.)
• PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up to 16.6MB/sec.)
• Bus mastering reduces CPU utilization during disk transfer
• Supports ATAPI CD-ROM, LS-120, ZIP and SCSI sequential boot-up

Integrated I/O
• Ultra I/O controller
• Two NS16C550A-compatible high speed UARTs
• One SPP/ECP/EPP parallel port
• Supports up to 2.88MB floppy drive

Processor Slot
• 321-pin ZIF socket (Super 7)
• Equipped with a switching voltage regulator

ACCELERATED GRAPHICS PORT (A.G.P.
• AGP is an interface designed to support high performance 3D graphics cards
• AGP 2x supports up to 533MB/sec. bandwidth for 3D graphics applications

CONNECTORS
• 2 connectors for external USB ports
• 1 connector for IrDA interface
• 2 serial ports
• 1 parallel port
• 2 IDE connectors
• 1 floppy connector
• 1 PS/2 mouse port
• 1 PS/2 or AT keyboard port
• 1 20-pin ATX power supply connector
• 1 12-pin standard AT power supply connector

EXPANSION SLOTS
• 1 AGP slot
• 3 dedicated PCI slots
• 2 dedicated 16-bit ISA slots
• 1 shared PCI/ISA slot4 layers, ATX form factor

PCB
• 4 layers, Baby AT form factor
• 25cm (9.84") x 22cm (8.66")
