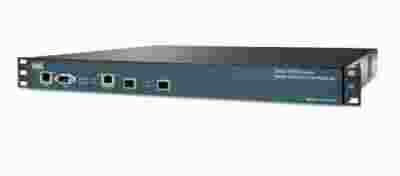

CISCO AIR-WLC4402-12-K9 V01 (365)
2X SFF GLC-SX-MM
CISCO AIR-WLC4402-12-K9 V01 (365)
2X SFF GLC-SX-MM
Bootloader 4.2.112.0 (Mar 12 2008 - 19:38:43)
Motorola PowerPC ProcessorID=00[zasłonięte]000 Rev. PVR=80[zasłonięte]020
CPU: 833 MHz
CCB: 333 MHz
DDR: 166 MHz
LBC: 41 MHz
L1 D-cache 32KB, L1 I-cache 32KB enabled.
I2C:ready
DTT:1 is 27 C
DRAM:DDR module detected, total size:512MB.
512 MB
8540 in PCI Host Mode.
8540 is the PCI Arbiter.
Memory Test PASS
FLASH:
Flash Bank 0: portsize = 2, size = 8 MB in 142 Sectors
8 MB
L2 cache enabled: 256KB
Card Id: 1540
Card Revision Id: 1
Card CPU Id: 1287
Number of MAC Addresses: 32
Number of Slots Supported: 4
Serial Number: FOC1048F0FY
Unknown command Id: 0xa5
Unknown command Id: 0xa4
Unknown command Id: 0xa3
Manufacturers ID: 30464
Board Maintenance Level: 00
Number of supported APs: 12
In:serial
Out:serial
Err:serial
.o88b. d888888b .d8888..o88b..d88b.
d8PY8`88'88'YP d8PY8 .8PY8.
8P88`8bo.8P8888
8b88`Y8b. 8b8888
Y8bd8.88.db8D Y8bd8 `8bd8'
`Y88P' Y888888P `8888Y'`Y88P'`Y88P'
Model AIR-WLC4402-12-K9S/N: FOC1048F0FY
Net:
PHY DEVICE: Found Intel LXT971A PHY at 0x01
FEC ETHERNET
IDE:Bus 0: OK
Device 0: Model: STI Flash 7.4.0 Firm: 01.25.06 Ser#: STI J106[zasłonięte]27[zasłonięte]05
Type: Removable Hard Disk
Capacity: 245.0 MB = 0.2 GB (501760 x 512)
Device 1: not available
Booting Primary Image...
Press now for additional boot options...
Detecting Hardware . . .
XML config selected
Cisco is a trademark of Cisco Systems, Inc.
Software Copyright Cisco Systems, Inc. All rights reserved.
Cisco AireOS Version 4.2.207.0
Initializing OS Services: ok
Initializing Serial Services: ok
Initializing Internal Interfaces: ok
Initializing Network Services: ok
Starting ARP Services: ok
Starting Trap Manager: ok
Starting Network Interface Management Services: ok
Starting System Services: ok
Starting FIPS Features: Not enabled
Starting Fast Path Hardware Acceleration: ok
Starting Switching Services: ok
Starting QoS Services: ok
Starting Policy Manager: ok
Starting Data Transport Link Layer: ok
Starting Access Control List Services: ok
Starting System Interfaces: ok
Starting Client Troubleshooting Service: ok
Starting Management Frame Protection: ok
Starting LWAPP: ok
Starting Certificate Database: ok
Starting VPN Services: ok
Starting Security Services: ok
Starting Policy Manager: ok
Starting Authentication Engine: ok
Starting Mobility Management: ok
Starting Virtual AP Services: ok
Starting AireWave Director: ok
Starting Network Time Services: ok
Starting Cisco Discovery Protocol: ok
Starting Broadcast Services: ok
Starting Logging Services: ok
Starting DHCP Server: ok
Starting IDS Signature Manager: ok
Starting RFID Tag Tracking: ok
Starting Power Supply and Fan Status Monitoring Service: ok
Starting Mesh Services:ok
Starting TSM: ok
Starting LOCP: ok
Starting CIDS Services: ok
Starting Ethernet-over-IP: ok
Starting Management Services:
Web Server: ok
CLI: ok
Secure Web: ok
(Cisco Controller)
Enter User Name (or 'Recover-Config' this one-time only to reset configuration to factory defaults)
User:admin
Password: password
(Cisco Controller) >en
Incorrect usage.Use the '?' or key to list commands.
(Cisco Controller) > sysinfo
Manufacturer's Name.............................. Cisco Systems Inc.
Product Name..................................... Cisco Controller
Product Version.................................. 4.2.207.0
RTOS Version..................................... 4.2.207.0
Bootloader Version............................... 4.2.112.0
Build Type....................................... DATA + WPS
System Name...................................... Cisco_72:03:a3
System Location..................................
System Contact...................................
System ObjectID.................................. 1.3.6.1.4.1.14179.1.1.4.3
IP Address....................................... 192.168.2.1
System Up Time................................... 0 days 0 hrs 7 mins 29 secs
Configured Country............................... US- United States
Operating Environment............................ Commercial (0 to 40 C)
Internal Temp Alarm Limits....................... 0 to 65 C
Internal Temperature............................. +31 C
|
