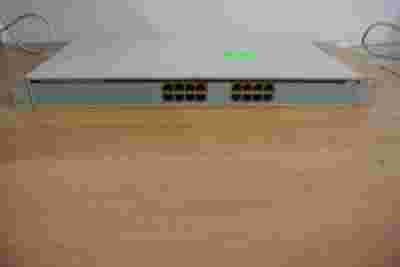

SWITCH UŻYWANY 100% SPRAWNY.

POSIADAM 3 TAKIE SWITCHE.

16 x 10/100/1000Mbps Auto-negotiation Gigabit Ethernet ports
Auto MDI/MDI-X for each port
Support full- duplex and half- duple x operation with IEE802.3x flow control and backpressure
Support Full/Half duplex transfer mode for 10/100Mbps
Support Full duplex transfer mode for 1000Mbps
Store-and-Forward switching method
Integrated address Look-Up Engine, supports 8K absolute MAC addresses
Supports 340KBytes RAM for data buffering
Extensive front-panel diagnostic LEDs
IEEE 802.3x flow control for full-duplex
Back pressure flow control for half-duplex
Standard 19”Rack-mount design


Specification
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
Network Media
Ethernet : 2-pair UTP Cat. 3,4,5, up to 100Meter
Fast Ethernet : 2-pair UTP Cat. 5, up to 100Meter
Gigabit Ethernet : 4-pair UTP Cat. 5 plus, up to 100Meter
Recommend Cat5E for Gigabit Operation

Protocol
CSMA/CD
Topology
Star
Number of Ports
16 x 10/100/1000Mbps Auto-MDI/MDI-X port with RJ-45 connector
Network Data Transfer Rate
Ethernet : 10Mbps(Half-duplex)
20Mbps(Full-duplex)
Fast Ethernet : 100Mbps(Half-duplex)
200Mbps(Full-duplex)
Gigabit Ethernet : 2000Mbps(Full-duplex)

Data RAM Buffers
340Kbytes
Filtering Address Table
8K entries per device
Diagnostic LEDs
Per Unit : Power
Per Port : Link/ACT, 1000M , 100M

Power
100 - 240VAC 50/60Hz, Internal Universal Switching Power
Power Consumption
13.5 watts. (max.)
Dimensions (W x D x H)
440 x 140 x 44 mm
Temperature
Operating : 0 ~ 40 oC
Storage : -10 ~ 70 oC

Humidity
Operating : 10% ~ 90% RH
Storage : 5% ~ 90% RH

Emission
FCC Class A / CE mark Class A / VCCI-A
Safety
cUL (UL 60950) / CB (IEC 60950)

!!! GWARANCJA 30DNI !!!
