Bus Pirate v4 + Bus Pirate v4 Probe Kit f.VAT

25-10-2014, 11:53
Aukcja w czasie sprawdzania była zakończona.

Cena kup teraz: 255 zł

Użytkownik arduinosolutions

numer aukcji: 4640939603

Miejscowość Goczałkowice-Zdrój

Koniec: 25-10-2014, 11:32

Dodatkowe informacje:
Stan: Nowy

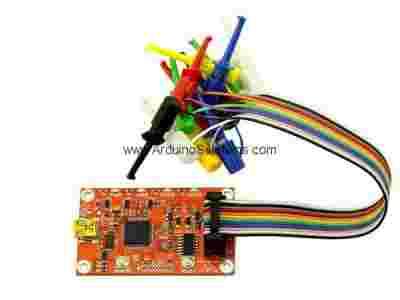

Bus Pirate v4 + Bus Pirate v4 Probe Kit

Zestaw zawierający: Bus Pirate v4 oraz dedykowane przewody (Bus Pirate v4 Probe Kit)

Bus Pirate v4 is a universal bus interface that talks to electronics from a computer serial terminal. Get to know a chip without writing code. Eliminates a ton of early prototyping effort with new or unknown chips. Seeed Studio is the official manufacturer and supporter of the Bus Pirate project. Version 4 is the next generation Bus Pirate hardware, but it's not as stable as Bus Pirate v3. If you're just starting out with the Bus Pirate we still recommend v3 - it's cheaper, more reliable, and has all the same major features. See a Bus Pirate v4 vs v3 comparison. Protocols 1-Wire, I2C, SPI, JTAG, asynchronous serial (UART), MIDI, PC keyboard, HD44780 LCDs, and generic 2- and 3-wire libraries for custom protocols.

Features

USB interface, USB powered
5volt tolerant pins
0-6volt measurement probe
1Hz-40MHz frequency measurement
1kHz-4MHz pulse-width modulator, frequency generator
On-board multi-voltage pull-up resistors
On-board 3.3volt and 5volt power supplies with software reset
Macros for common operations
Bus traffic sniffers (SPI, I2C)
Transparent USB->serial bridge mode
10Hz-1MHz low-speed logic analyzer
Custom support in AVRDUDE , Flashrom , OpenOCD
AVR STK500 v2 programmer clone
Scriptable from Perl, Python, etc.
A bootloader for easy USB firmware updates
Open source (CC 0/public domain)

New in Bus Pirate v4

256K program space, 4 times more flash than v3
Integrated, on-board USB (faster)
Data storage EEPROM to store settings
Software pull-up voltage selection: 3.3volt, 5volt, or external supply
2 extra I/O pins
Multipurpose button
Bus Pirate v4 vs v3 comparison

Support

Bus Pirate manual
Bus Pirate v4 hardware overview
Chip demonstrations
Latest firmware
Bus Pirate forum

First batch warning

Each Bus Pirate v4 is tested before it leaves the factory, but please keep in mind that v4 is still experimental, unproven hardware. If in doubt please buy the cheaper Bus Pirate v3, it is still manufactured and actively supported. This hardware is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

If you encounter any problems when using this product, here is the forum from which you can get the technical support.

Bus Pirate v4 Probe Kit

This probe kit is designed for Bus Pirate v4 that make it easier to connect Bus Pirate v4 to any circuit boards, it has 12 clip probes and a 12 pin connector, good partner for Bus Pirate V4!

Features

12 clip probes
20cm in length

Kupując na moich aukcjach za przesyłkę płacisz tylko raz.

Do każdego zamówienia dołączam paragon lub fakturę VAT.

Wszystkie zamówione przedmioty wysyłane są z Polski.

Informacja dla obserwujących aukcję - zdarza mi się kończyć aukcję przed czasem, więc proszę nie czekać do ostatniej chwili.

Kontakt: tel. 663[zasłonięte]362 od godziny: 10-18.
