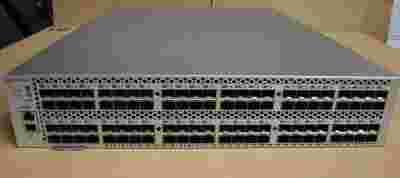

Brocade 6520
96 Port 8Gb - 16Gb Fibre SAN Switch
Brocade 6520 (749)
72 portów aktywne
·96 port 72 port active licenced
Prędkość:
predkość 16 Gb
Parametry:
Switch Fabric Capacity 232 Gb/s
Forwarding Rate 131 Mpps
Up to 8,000 MAC Addresses
Pamięć: 2048 RAM
Licencja:
RyeQy9yybcSzjRzJ:
First Ports on Demand license - additional 24 port upgrade license
Login: admin
Password: password
Adres IP: 192.168.1.111
Wersja oprogramowania:
CS2BRC210:admin> version
Kernel: 2.6.14.2
Fabric OS: v7.1.0a
Made on: Tue Jan 22 19:33:14 2013
Flash: Fri Jul 19 20:21:32 2013
BootProm: 1.0.15
CS2BRC210:admin> licenseshow
RyeQy9yybcSzjRzJ:
First Ports on Demand license - additional 24 port upgrade license
U-Boot 1.1.3 (Jan 17 2013 - 16:12:01)
CPU: 8548, Version: 3.1, (0x80[zasłonięte]031)
Core: E500, Version: 2.2, (0x80[zasłonięte]022)
Clock Configuration:
CPU:1199 MHz, CCB: 399 MHz,
DDR: 199 MHz, LBC: 49 MHz
L1: D-cache 32 kB enabled
I-cache 32 kB enabled
Board: Odin
CPU Board Revision 255.198 (0xffc6)
PCI2: disabled
I2C: ready
DRAM: Initializing DDRSDRAM
memsize = 800
DDR: 2048 MB
POST RAM test disabled.
Now running in RAM - U-Boot at: 7fb87000
trap_init : 0x0
system inventory subsystem initialized
FLASH: 4 MB
SPRZĘT PRZETESTOWANY TECHNICZNIE SPRAWNY
|
