Przedmiotem aukcji jest

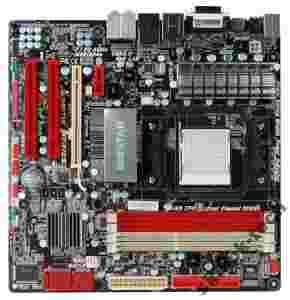

BIOSTAR TA890GXE

licytujemy sama plyte
miesiec gwarancji od momentu wysylki
paragon,fvat dla firm

• Overview
• Specification
• Accessories
• CPU Support
• Memory Support
• Download

• CPU-Chipset Features
  • AMD 890GX+SB850

    Powered by ATI Radeon™ HD 4290 Graphics, DirectX® 10.1 introduces detail-rich images and dynamic interactivity designed for playing the latest DirectX® 10.1 games. AMD® 890GX Chipset is designed with up to 5200MT/s HyperTransport™ 3.0 (HT3.0) interface and PCI Express™ 2.0 x 16 graphics. It has enhanced AMD's latest AM3 and multi-core CPUs to experience life-like images and dynamic interactivity when playing the latest games or editing digital photos and videos.
• Audio+
  • S/P DIF Output on board

    Onboard Optical & Coaxial connector supports your desktop in transferring the non-distortion digital audio output to the AV amplifier and professional speaker system.
• Video+
  • 128MB DDR3 SidePort

    The 128MB side-port memory onboard can accelerate 3D gaming performance easily. Side-port memory is similar to onboard graphics memory buffer. When enabled, it could increase the 3D performance by another 10% or more.
  • Integrated HDMI with HDCP

    Onboard HDMI connector allows full video & audio support. It has industry-leading high definition video quality.
• Speed+
  • SATA 6Gb/s
    High Efficiency of Data transfer rate

    SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA 3G.
  • GTO6³ the newest technology presented by BIOSTAR

    GTO 6³ stands for GreaTurbo Overclock, which is specially designed for overclockers. GT60, SATA 6G, and AMD 6-core processor support the Actor of GTO 6³. GTO 6³ offers “GT60” technology with gaming capability of up to 60% gain performance; SATA6G has the fastest storage transfer rate on Earth; and the upcoming AMD 6-core processor has remarkable multi-computing solution.
  • GT60

    Biostar GT60 is a unique OC method that enables users to adjust onboard GPU clock and voltage. GT60’s innovative design with flexible adjustment can enhance system gaming performance by up to 60%.
  • ATI Hybrid CrossFireX™ Technology

    ATI Hybrid CrossFireX™ takes your gaming experience to the next level, under a Windows Vista® environment. ATI Hybrid CrossFireX boosts PC performance by enabling the AMD Chipset's integrated graphics processor and a discrete GPU (ATI Radeon™ HD 2400 Series ATI Radeon™ HD 3400 Series) to operate simultaneously with combined output to a single display for blis display for blisteringly-fast frame rates. Unleash the graphics performance that you've been waiting for on a mainstream Windows Vista® PC!
  • eSATA

    One or Two external SATA 3Gb/s ports connectivity with minimal host overhead and host to device latency.
  • IEEE1394 on board

    IEEE 1394a is a serial bus interface for high-speed communication and data transfer. Major applications are in desktop, digital video/audio and other portable devices.
  • O.N.E

    Biostar offers 3 kinds of overclocking settings (V6/V8/V12) that provide good, better, best O.C settings. The motherboard features the Biostar T series motherboards that allow users to conveniently load preset BIOS settings.
    These BIOS settings give users freedom to enjoy overclocking with simple instructions.
  • Tweak Tech

    Biostar has a unique engineering PWM layout with low ESR and high ripple conductive solid state caps that provide sufficient, stable power supply to the CPU. The same philosophy applies to our DDR design to enhance the memory’s voltage stability.
• Durable+
  • DPU (Digital Power Unit)

    BIOSTAR DPU (Digital Power Unit) delivers high-speed phase control for lower, efficient, and balanced temperature. DPU can be configured for precise optimization of the power current. It also supports dynamic phase control that automatically increments and decrements active phases based upon load current. With DPU’s Utility and 3D (Digital Command, Digital Communication and Digital Control) architecture, it improves CPU VR efficiency by over 15% gain performance.
  • Real 4+1 Phases Power Design

    4+1-phase VRM design with high quality power components such as low RDS (on) Mosfet for lower temperature has the advantage to raise the overclocking ability for Phenom/ PhenomII CPU.
  • 2 Phase Memory Power Design

    2-phase independent power design increases memory voltage stability and durability.
  • 100% Solid Caps

    With armor-plated Biostar Technology, all capacitors are placed with 100% solid capacitors that have a lasting life cycle, durability and stability for crucial components.
  • G.P.U (Green Power Utility)

    BIOSTAR G.P.U (Green Power Utility) is a new function that enhances energy efficiency by disabling extra phases while CPU is under light loading. It integrates a friendly GUI to monitor the resourcing and response of your CPU thus optimizing the power saving function in your system. G.P.U. constantly sets up the best power efficiency in your system, be it for heavy 3D gaming, Internet or MSN charting. more...
• DIY+
  • Exclusive offer!

    As an Biostar customer you can download MAGIX multimedia tools designed to enhance your music, videos and photos for free. From music and website creation to video editing and photo management. Four products that cover all of your multimedia needs. Simply do more with your media than you ever thought possible. more...
  • What is simplicheck ?

    simplicheck is a small, intelligent tool by simplitec GmbH that scans your PC for optimal performance. Is poor configuration slowing your PC down? Are there errors that reduce system stability? Is your privacy protected? simplicheck is based on well-proven scanning technology that has proven successful in everyday customer use. simplitec GmbH benefits from 18 year of experience system software development. more...
  • BIO-Flasher

    Update BIOS effortlessly from a USB flash disk before entering the OS.
    BIO-Flasher is a convenient BIOS update tool. Just launch this tool and put the BIOS on USB pen driver before entering the OS. You can update your BIOS with only a few clicks without preparing an additional floppy disk or other complicated flash utility.
  • BIO-ReLife

    BIO-ReLife Technology lets you recover crashed BIOS data from a USB flash pen driver that stores new BIOS file. This practical BIOS utility can restore your system and recover from a BIOS crash situation.
  • Rapid Switch

    No more meddling with the power and reset jumpers onboard. The power and reset buttons are already built onboard. It is convenient for DIY users to test the board without short-circuiting the wrong pins.
  • Rapid Debug

    There is no need to check any H/W installation error. Onboard LED indicator answers the question for the user.
