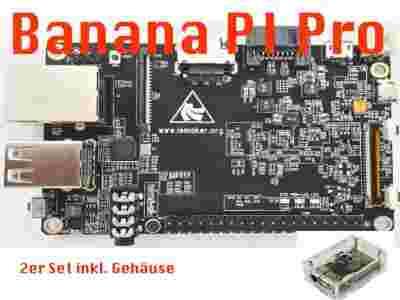

Banana PI PRO Board z Clear Case

23-01-2015, 21:33
Aukcja w czasie sprawdzania była zakończona.

Cena kup teraz: 399 zł

Użytkownik GS_Hain (0)

numer aukcji: 4978545283

Miejscowość Niemcy

Wyświetleń: 434

Koniec: 23-01-2015, 21:10

Dodatkowe informacje:
Stan: Nowy
Waga (z opakowaniem): 1.00 [kg]

Sprzedam BANANA PI PRO. Towar jest w Niemiec i wysylamy paczka na adres podany. Platnisc przelew bankowy lub PayPal Feature Banana Pro Banana Pi SoC Allwinner A20 CPU A20 ARM cortex A7 Dual-Core 1GHz GPU ARM Mali400 MP2, complies with OpenGL ES2.0/1.1 SDRAM 1GB DDR3 SDRAM (shared with GPU) Power 5V @ 2 A MicroUSB (DC in only) and/or MicroUSB (OTG) PMU AXP209 Low-Level Peripherials 40 Pins GPIO Header 26 Pins GPIO Header 30x GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, CAN, I2S, SPDIF, LRAC, ADC, Line-IN, FM-IN and HP-IN 23x GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, CAN. LRAC; ADC, Line-IN and HP-IN On board Network 10/100/1000 Ethernet (Realtek RTL8211E/D) Wi-Fi module 802.11 b/g/n N/A Bluetooth Optional N/A On Board Storage MicroSD (TF) card SD card Display Supports multi-channel HD display HDMI 1.4 (Type A - full) LVDS/RGB/CPU display interface (DSI) for raw LCD panels 11 HDMI resolutions from 640x480 to 1920x1080 plus various PAL and NTSC standards Composite video (PAL and NTSC) (Via 3,5 mm TRRS jack shared with audio out) Composite video (PAL and NTSC) (Via RCA jack) Video HD H.[zasłonięte]264 21p video decoding Multi-format FHD video decoding, including MPEG-½, MPEG-4, H.263, H264, etc. H.264 high profile 1080p@30fps or 720@60fps Audio Outputs HDMI, analog audio (via 3,5 mmm TRRS jack shared with) Composite video out), I2S audio (also potentially for audio input) HDMI, analog audio (via 3,5 mm phone jack) Camera Parallel 8-bit camera interface Audio input On Board microphone USB 2 USB 2.0 hosts, 1 USB 2.0 OTG (all direct from A20 chip) Buttons Reset button Power button U-boot Button LEDs Power Status LED (red) Ethernet status LED (blue) User defined LED (green) Other IR receiver Sizes 92mm x 60mm Weight 48g
