Product Specifications

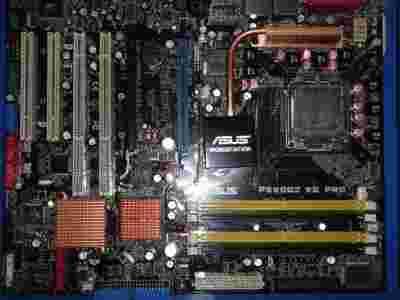

P5WDG2 WS Pro

CPU

Intel Socket 775 Pentium® Extreme/Pentium® D/Pentium® 4/Celeron Processors
Compatible with Intel® 05B/05A/06 processors
Intel® Hyper-Threading Technology ready

Chipset

Intel 975X
South Bridge: Intel ICH7R;PCI-X Bridge: Intel 6702 PXH

Front Side Bus

1066/800/ MHz

Memory

4 x DIMM, Max. 8 GB, DDR2 667/533/ ECC,Non-ECC,Un-buffered Memory
Native DDR2 800 Support

Expansion Slots

2 x PCIe x16 slots
2 x PCI 2.2
2 x PCI

Storage

1 xUltraDMA 133/100/
4 xSATA 3 Gb/s ports Support RAID 0,1,5,10,

Audio

ADI 1988B 8 -Channel High Definition Audio CODEC
Coaxial / Optical S/PDIF out ports
Support Jack-Sensing, Enumeration, Multi-streaming and Jack-Retasking

LAN

Marvell 88E8052 + 88E8001PCI-E Dual Gigabit/ LAN controller Support Teaming Technology

USB

8 USB 2.0 ports

ASUS Unique Features

ASUS Quiet Thermal Solution
- ASUS AI Gear
- ASUS AI Nap

ASUS EZ DIY
- ASUS MyLogo 2
- SATA on the Go

Special Features

ASUS C.P.R.(CPU Parameter Recall)
AI Overclocking
SFS (Stepless Frequency Selection) : allowing FSB tuning from 200MHz up to 450MHz at 1MHz increment

Back Panel I/O Ports

x Parallel
x Audio I/O
x PS/2 Keyboard
x PS/2 Mouse
x S/PDIF Out
x LAN(RJ45) port
4 x USB 2.0/1.1
x WiFi-AP Solo™ antenna jack

Internal I/O Connectors

x Floppy disk drive connector
x IDE connector
x SATA connectors
x IEEE 1394a connector
1 x8-pin ATX 12V Power connector
24 -pin ATX Power connector
Front panel audio connector
Chassis Intrusion connector
CD/AUX audio in
