ASUS M4A77TD PRO 45nm AMD 770 AM3 AM2+ FV

27-01-2014, 3:35
Aukcja w czasie sprawdzania nie była zakończona.

Cena kup teraz: 199 zł

Użytkownik sklepk-tech

numer aukcji: 3879425933

Miejscowość Poznań

Zostało sztuk: 2 Wyświetleń: 61

Koniec: 27-01-2014, 3:39

Dodatkowe informacje:
Stan: Używany
Producent: Asus
Socket: AMD Socket AM2+ , AMD Socket AM3

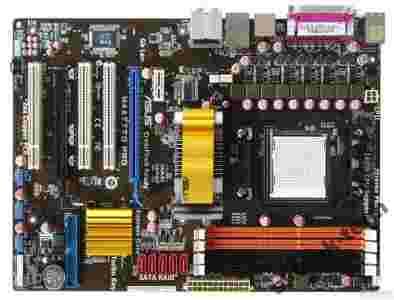

Przedmiotem aukcji jest plyta

ASUS M4A77TD PRO

licytujemy sama plyte
3 miesiace gwarancji do momentu wysylki
paragon,fvat dla firm

Specifications

CPU	AMD Socket AM3 ;Phenom™II /Athlon™II /Sempron™ 100 Series Processors AMD 140W CPU Support AMD Cool 'n' Quiet™ 2.0 Technology (by CPU type) Support 45nm CPU *Refer to www.asus.com for the AMD CPU support list
Chipset	AMD 770/SB710
System Bus	Up to 5200 MT/s ; HyperTransport™ 3.0 interface
Memory	4 x DIMM, Max. 16 GB, DDR3 1800(O.C.)/1600(O.C.)/1333/1066 ECC,Non-ECC,Un-buffered Memory Dual Channel memory architecture AMD AM3 100 and 200 series CPU support up to DDR3 1066MHz. *Due to OS limitation, when installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Install a 64-bit WindowsWindows® OS when you want to install 4GB or more memory on the motherboard. Please refer to www.asus.com or user manual for Memory QVL.
Expansion Slots	1 x PCIe 2.0 x16 2 x PCIe x1 3 x PCI
Storage	SB710 Chipset 1 xUltraDMA 133/100 6 xSATA 3 Gb/s ports Support RAID 0,1,10,JBOD
LAN	RTL8112L PCIe Gigabit LAN controller featuring AI NET2
Audio	VT1708S High Definition Audio 8-Channel CODEC - Supports Jack-detect and Multistreaming teconologies, and Front Panel Jack-Retasking - Optical S/PDIF Out ports at back I/O
USB	12 USB 2.0/1.1 ports (6 ports at mid-board, 6 ports at back panel)
ASUS Unique Features	- ASUS EPU-4 Engine - ASUS Express Gate - ASUS Turbo Key - ASUS Q-Fan - ASUS CrashFree BIOS 3 - ASUS EZ Flash 2 - ASUS MyLogo 2 - ASUS AI NET 2
Overclocking Features	Intelligent overclocking tools - ASUS Turbo Key SFS (Stepless Frequency Selection) - FSB tuning from 200 MHz up to 550MHz at 1MHz increment - PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall)
Special Features	100% All High-quality Conductive Polymer Capacitors
Back Panel I/O Ports	1 x PS/2 Keyboard/Mouse Combo port 1 x S/PDIF Out (Optical) 1 x LAN(RJ45) port 1 x COM port 1 x LPT 6 x USB 2.0/1.1 8-channel Audio port
Internal I/O Connectors	3 x USB connectors supports additional 6 USB 2.0 ports 1 x IDE connector 6 x SATA connectors 1 x S/PDIF Out connector 1 x CPU / 1 x Chassis Fan connectors 1 x System Panel connector 1 x High Definition Front panel audio connector 1 x 24-pin EATX power connector 1 x 4-pin ATX 12V Power connector
BIOS	8 Mb Flash ROM AMI BIOS, PnP, DMI v2.0, WfM2.0, ACPI v2.0a, SMBIOS 2.5

M4A77TD

AMD 140W CPU Support
DDR3 1800+(O.C.)
All Solid Capacitor
Stack Cool 3
Turbo Key
ASUS EPU

Add To Compare List Print Microsite

Overview
Specifications
Features
Download
QVL
Memory/Device Support
CPU Support List
Accessory

AMD® Phenom™ II/Athlon™ II/ Sempron™ 100 Series CPU support

This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process.

AMD 770 chipset

AMD 770 Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities.

HyperTransport 3.0 Support

Provides 2.6 times more bandwidth than HT1.0 that radically improves system efficiency for a smoother, faster computing environment.

ASUS EPU

The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage to save power and money!

Dual-Channel DDR3 1800(O.C.)

This motherboard supports DDR3 1800(O.C.) that provides faster data transfer rate and more bandwith to increase memory computing efficiency, enhancing system performance in 3D graphics and other memory demanding applications.

PCIe 2.0 support

This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.

Turbo Key

ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!

Gigabit LAN

The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.

ASUS Express Gate

0 to Internet in Seconds!
Express Gate™ is an ASUS exclusive OS that provides you with quick access to the Internet and key applications before entering Windows®.

High Definition Audio

Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.

ASUS EZ Flash2

With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required.

ASUS Q-Fan

ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.

ASUS CrashFree BIOS3

The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

MyLogo2

Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

C.P.R.(CPU Parameter Recall)

When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.

S/PDIF-out on Back I/O Port

This motherboard provides convenient connectivity to external home theater audio systems via coaxial and optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.

Uses 100% All High-quality Conductive Polymer Capacitors!

This motherboard uses all high-quality conductive polymer capacitors onboard for durability, improved lifespan, and enhanced thermal capacity.

GreenASUS

The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
