Supports AMD Socket AM2+/AM2 for Phenom FX/Phenom/ Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron

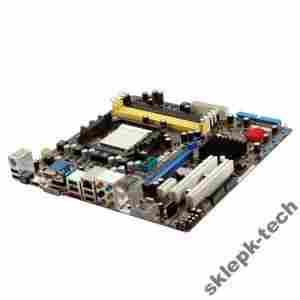

The motherboard supports AMD socket AM2+/AM2 for Phenom FX/Phenom/Athlon 64/ Sempron/Athlon 64 X2/ Athlon 64 FX/ processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture.It features 2000 MT/s HyperTransport1.0 Bus, dual-channel un-buffered DDR2 1066 (AM2+) and DDR2 800 (AM2) memories support and AMD Cool ´n´ Quiet! Technology.
|
AMD Cool ´n´ Quiet! Technology
M3N78 supports AMD Cool ´n´ Quiet! Technology, which monitors system operation and automatically adjusts CPU voltage and frequency for a cool and quiet environment.
|
64-bit CPU support
64-bit computing, the technology to replace 32-bit architecture, delivers advanced system performance, faster memory access and increased productivity. This motherboard provides excellent compatibility and flexibility by supporting either 64-bit or 32-bit architecture.
|
NVIDIA® GeForce™ 7050PV+nForce™ 630a
The NVIDIA® GeForce™ 7050 GPU Northbridge supports Microsoft® DirectX 9.0 Shader Model 3.0, The NVIDIA® nForce™ 630a MCP delivers NVIDIA® Gigabit LAN, and NVIDIA® MediaShield storage management technology allowing easy RAID configuration (RAID 0, RAID 1,RAID10,RAID5) for Serial ATA 3Gb/s.
|
HDMI™ Interface
HDMI (High-Definition Multimedia Interface) is the industry-supported, uncompressed, all digital audio and video interface via a single cable and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc and other protected content.
|
DVI Interface
DVI (Digital Visual Interface) provides high visual quality of digital display devices such as LCD monitor. The interface of this motherboard supports dual VGA output both DVI-D/HDMI and RGB.
|
NVIDIA® PureVideo™ HD Technology
PureVideo HD technology is the core of a complete Blu-ray or HD DVD movie solution, featuring hardware acceleration, post-processing, HDCP circuitry, and integration with leading HD movie software players.
|
Dual channel DDR2 1066
DDR2 1066 memory provides great performance for 3D graphics and other memory demanding applications on next generation memory technology.
|
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming.
|
Serial ATA 3Gb/s
This motherboard supports next-generation SATA hard drives based on the new SATA 3Gb/s storage specification, allowing RAID 0, RAID 1,RAID 0+1,RAID 5 and JBOD configurations for five SATA connectors.
|
SATA on the Go
This motherboard supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.
|
Gigabit LAN
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. |
High Definition Audio
Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
|
Max. 12 USB 2.0 ports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.
|
|
ASUS Express Gate
Surf the Internet in 5-second-boot time without entering Windows
With a fast bootup speed of only 5 seconds, the ASUS Express Gate offers an optional Linux OS bootup that allows you to enjoy instant access to commonly used functions like accessing the Internet, VoIP, and Web emailing without entering the OS.
* The actual boot time is subject to hardware configurations and product models
|
ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.
|
ASUS CrashFree BIOS3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
|
C.P.R.(CPU Parameter Recall)
When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again.
|
ASUS EZ Flash2
With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required.
|
MyLogo2
Personalize your system with customizable boot logo You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
|
|
GreenASUS
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
|
