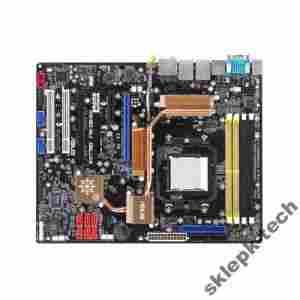

The M2N32-SLI Deluxe supports dual PCI Express x16 slots running at full speed to liberate graphics cards from the narrow bandwidth platform of x8 speed only. With ASUS innovative AI Lifestylestyle features, such as AI Gear, 8-Phase Power Design, Stack Cool2 and special designed heat-pipe, the M2N32-SLI Deluxe brings you quiet and peaceful computing. This motherboard also bundles an unique Array Microphone and wireless AP function to satisfy the demand in digital life. Together with extreme over-clocking capability, you can easily enjoy faster graphics performance and higher video quality today, and be ready for the even more demanding tasks of tomorrow!
|
ASUS AI Lifestyle
AI Lifestyle Series motherboards bring lifestyle and personal computing together. They provide better system performance for graphics-intensive applications such as 3D games and deliver cutting-edge audio features that dramatically enhance the quality of voice signal. Thoughtful design further allows quick and easy system setup. To create a peaceful environment, several new and improved innovations are included to reduce noise and temperature. Don´t change your way of life for a computer. Instead let the ASUS Lifestyle Series improve the quality of your life.
|
AI Gear
To balance both system performance and quietness, AI Gear allows users to choose from profiles to adjust CPU frequency and vCore voltage, minimizing system noise and power consumption. Users can real-time change the mode under operating system to suit their needs.
|
AI Nap
With AI Nap, users can instantly snooze your PC without terminating the tasks. System will continue operating at minimum power and noise when user is temporarily away. It keeps downloading files or running applications in quietest state while you´re sleeping. Simply click keyboard or mouse, you can swiftly wake up the system in few seconds.
|
WiFi-AP Solo™ (Wireless Edition only)
|
ASUS Crystal Sound
This feature can enhance speech-centric application like Skype, online game, video conference and recording.
Noise Filter
This feature detects repetitive and stationary noises like computer fans, air conditioners, and other background noises then eliminates it in the incoming audio stream while recording. |
Advanced Thermal Design
ASUS has devoted special efforts to address the thermal issues across the motherboard, and most notably the areas that reside the CPU, power, Northbridge and Southbridge.
Stack Cool 2
Stack Cool 2 is a fan-less and zero-noise cooling solution offered exclusively by ASUS. It effectively transfers heat generated by the critical components to the other side of the specially designed PCB (printed circuit board) for effective heat dissipation.
8 Phase Power Design
ASUS 8-Phase Power Design keeps CPU and power module away from suffering risk of high power stress, which makes CPU lifetime much longer and system more stable. Furthermore, It provides high efficiency operation to generate less heat than conventional power solutions and consequently achieve cool system environment. With this strong power pump, this motherboard is made for overclocking.
Fanless Design: Heat-pipe Thermal solution
Cooling fans, though a popular thermal solution, also come with noise and malfunction likelyhood. ASUS Motherboard´s fansless concept is specifically created to provide a cool environment without all the baggage.
The heat pipe, heat sinks and strategic board layout were tailor made to dissipate heat in the most efficient manner.
|
| AMD CPU Features |
Supports AMD Socket AM2+/AM2 for Phenom FX/Phenom/ Athlon 64 X2 / Athlon 64 FX / Athlon 64 / Sempron
The motherboard supports AMD socket AM2+/AM2 for Phenom FX/Phenom/Athlon 64/ Sempron/Athlon 64 X2/ Athlon 64 FX/ processors with 2MB / 1MB / 512KB L2 cache, which is based on 64-bit architecture.It features 2000 MT/s HyperTransport1.0 Bus, dual-channel un-buffered DDR2 1066 (AM2+) and DDR2 800 (AM2) memories support and AMD Cool ´n´ Quiet! Technology.
|
Dual-Core CPU
The advanced processing technology contains two physical CPU cores with individually dedicated L2 caches to satisfy the rising demand for more powerful processing capability.
|
Dual-Channel DDR2 800
DDR2 is the next generation memory technology to replace the current DDR. With the highest speed up to 800MHz, DDR2 memory provides great performance for 3D graphics and other memory demanding applications.
|
| NVIDIA Features |
NVIDIA nForce® 590 SLI™ (NVIDIA LinkBoost™ certified)
NVIDIA nForce® 590 SLI™ media and communications processors (MCPs) deliver the tools and performance PC enthusiasts demand. When combined with select NVIDIA GeForce graphics cards and other system components, you get automatic access to faster bus speeds. Ready for system overclocking and greater data throughput.
|
NVIDIA SLI™ Technology
NVIDIA SLI™ (Scalable Link Interface) takes advantage of the increased bandwidth of the PCI Express bus architecture and features intelligent hardware and software that allows two GPUs to efficiently work together to deliver earth-shattering, scalable performance. For some applications nearly 2X performance! (From www.NVIDIA.com)
NVIDIA Essential Vista
NVIDIA nForce ® -based motherboards are essential for accelerating the Windows Vista experience by offering an enriched 3D user interface, increased productivity, and vibrant photos as well as delivering uncompromising performance, quality, and reliability.
|
| Intelligent Overclocking Tools |
AI Clock Skew
AI Clock Skew automatically skews the memory clock signal timing, thus improving memory overclocking capability by 10 to 15%, depending on the memory features when users overclock memory frequency. Users can easily enjoy better memory overclocking without strenuously fine-tuning the clock signal timing. For professional users, they can still adjust each memory channel´s clock signal separately to reach the highest memory frequency.
|
ASUS O.C. Profile
The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
|
Precision Tweaker
It offers ways to raise system performance inch-by-inch and step-by-step to achieve maximum performance! This is about getting the most out of your machine and taking pride in your customized computer.
| * vDIMM: |
Take control of how much power is going into the memory modules. ASUS gives you 25-step voltage control to the DIMM |
| * vCore: |
Find out "exactly" how much power your CPU needs. Fine-tune it with 0.0125 volts at a time! |
|
* SFS:
|
(Stepless Frequency Selection) allows |
- FSB tuning from 200MHz up to 400MHz at 1MHz increment
- PCI Express frequency tuning from 100MHz up to 200MHz at 1MHz increment |
|
|
|
AI NOS™
Applications such as 3D games and video editing demand a huge chunk of system resource. Inject "nitrous oxide" into your CPU! The patented AI NOS™ (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS™ reacts much faster to satisfy your unending need for speeds.
|
PEG Link
This latest technology, PEG (PCI Express Graphics) Link Mode, is a unique feature that enables users to boost graphics card performance for superior video quality. PEG Link allows users to raise GPU and VGA memory throughput via the motherboard BIOS the same way system bus and memory bus are tweaked. PEG Link Mode enables powerful video performance on DX8 and DX9 applications. ASUS engineers carefully fine-tuned the parameters for every single PCI-Express card to provide system stability during high-speed graphics operation.
|
| ASUS EZ DIY |
ASUS Q-Connector
The ASUS Q-Connector allows you to connect or disconnect chassis front panel cables in one easy step with one complete module. This unique adapter eliminates the trouble of plugging in one cable at a time, making connection quick and accurate.
|
ASUS CrashFree BIOS 3
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
|
ASUS EZ Flash 2
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
|
| Other ASUS Unique Features |
ASUS MyLogo 3
The ASUS MyLogo 3 is the new feature present in the motherboard that allows you to personalize and add style to your system with customizable and animated boot logos.
|
ASUS Music Alarm
Wake up to the music of your choice instead of the irritating sound of an alarm clock. The ASUS Music Alarm gives you a personal wake-up call with your favorite CD music when system is off.
|
| Interface Features |
Dual Gigabit LAN
The integrated dual Gigabit LAN design allows a PC to serve as a network gateway for managing traffic between two separate networks. This capability ensures rapid transfer of data from WAN to LAN without any added arbitration or latency.
|
High Definition Audio
Enjoy high-end sound system on your PC! The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
|
DTS Connect™
This feature is consists of two elements: DTS interactive and DTS NEO:PC . DTS interactive re-encodes your stereo or multi-channel sound into a DTS audio signal and send it out from your PC to any DTS enabled system. While DTS NEO:PC turns your stereo audio such as MP3, WMA, CD, and other sound format into a convincing multi-channel audio experience.
|
SATA on the Go
The M2N32-SLI Deluxe supports the next-generation hard drives based on the Serial ATA (SATA) 3Gb/s storage specification, delivering enhanced scalability and doubling the bus bandwidth for high-speed data retrieval and saves. The external SATA port located at the back I/O provides smart setup and hot-plug functions. Easily backup photos, videos and other entertainment contents on external devices.
|
Dual RAID
The NVIDIA nForce 590 SLI™ chipsets incorporate six Serial ATA connectors with high performance RAID functions in RAID 0, 1, 0+1, 5 and JBOD. The Silicon Image controller provides another two Serial ATA connectors for RAID 0, 1, and JBOD functions. This motherboard is the ideal solution to enhance hard disk performance and data back up protection without the cost of add-on cards.
|
IEEE 1394a interface
IEEE 1394a interface provides high speed digital interface for audio/video appliances such as digital television, digital video camcorders, storage peripherals & other PC portable devices.
|
|
| RoHS |
GreenAsus
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
|
