socket 754

Model

Brand

ASUS

Model

K8V SE DELUXE

Supported CPU

CPU Socket Type

754

CPU Type

Athlon 64 / Sempron

FSB

800MHz Hyper Transport (1600MT/s)

Chipsets

North Bridge

VIA K8T800

South Bridge

VIA VT8237

Memory

Number of Memory Slots

3×184pin

Memory Standard

DDR 400

Maximum Memory Supported

3GB

Expansion Slots

AGP Slots

1 x AGP 4X / 8X

PCI Express x16

None

PCI Slots

5

Other Slots

1x Wi-Fi

Storage Devices

PATA

3 x ATA100 6 Dev Max.

PATA RAID

0/1/0+1

SATA 1.5 Gb/s

4

SATA RAID

0/1/0+1

Additional RAID Controller

Promise PDC20378

Onboard Video

Onboard Video Chipset

None

Onboard Audio

Audio Chipset

ADI AD1980

Audio Channels

6 Channels

Onboard LAN

LAN Chipset

Marvell 88E8001

Max LAN Speed

10/100/1000Mbps

Rear Panel Ports

PS/2

2

COM

1

LPT

1

USB 1.1/2.0

4 x USB 2.0

IEEE 1394

1 x IEEE 1394a

S/PDIF Out

1 x Coaxial

Audio Ports

3 Ports

Internal I/O Connectors

Onboard USB

4 x USB 2.0

Onboard 1394

1 x 1394a

Physical Spec

Form Factor

ATX

Dimensions

12.0" x 9.6"

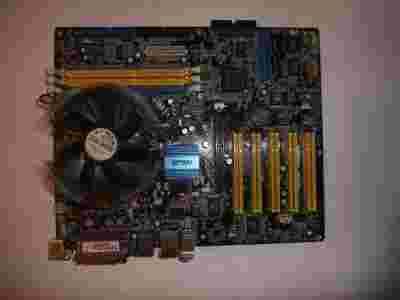

brak chłodzenia ze zdjecia
