AsRock N68C-S UCC AM2, AM2+, AM3 IDE def.

16-08-2014, 15:08
Aukcja w czasie sprawdzania była zakończona.

Cena kup teraz: 89 zł Aktualna cena: 89 zł

Użytkownik next3

numer aukcji: 4432375991

Miejscowość Ostroszowice

Kupiono sztuk: 3 Licytowało: 2 Wyświetleń: 99

Koniec: 16-08-2014, 14:49

Dodatkowe informacje:
Stan: Nowy
Socket: AMD Socket AM2 , AMD Socket AM2+ , AMD Socket AM3
Rodzaj pamięci: DDR2, DDR3
Typ pamięci : DDR2 800, DDR3 1066, DDR3 1333, DDR3 1600

Nowa strona 1

Witamy

Przedmiotem licytacji są płyty główne wyjęte z nowych komputerów..

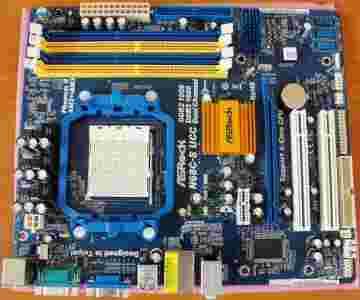

AsRock

N68C-S UCC

Płyty posiadają wadę: nie działa gniazdo IDE (jest połamane).
Do wyboru faktura lub paragon.

CPU	- Support up to 95W Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor - Support up to 95W Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 / Athlon II X4 / X3 / X2 / Sempron processors - Supports UCC feature (Unlock CPU Core) - Supports AMD's Cool 'n' Quiet Technology - FSB 1000 MHz (2.0 GT/s) - Supports Untied Overclocking Technology - Supports Hyper-Transport Technology If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced. **Aby uzyskać więcej informacji, zapoznaj się z "Listą wspieranych procesorów".
Chipset	- NVIDIA^® GeForce 7025 / nForce 630a
Pamięć	- Dual Channel DDR3/DDR2 memory technology* - 2 x DDR3 DIMM slots - Supports DDR3 1600/[zasłonięte]/1066/800 non-ECC, un-buffered memory - Max. capacity of system memory: 8GB* - 2 x DDR2 DIMM slots - Supports DDR2 1066**/800/667/533 non-ECC, un-buffered memory - Max. capacity of system memory: 8GB* DDR3 and DDR2 are supported separately. DDR3 memory is only supported by installing AM3 CPU. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation. **Support with AM3 / AM2+ CPU.
BIOS	- 8Mb AMI Legal BIOS - Supports "Plug and Play" - ACPI 1.1 Compliance Wake Up Events - Supports jumperfree - SMBIOS 2.3.1 Support - CPU, VCCM, NB Voltage Multi-adjustment
Audio, Video i sieć
karta graficzna	- Integrated NVIDIA^® GeForce 7025 graphics - DX9.0 VGA, Pixel Shader 3.0 - Max. shared memory 256MB - Supports D-Sub with max. resolution up to 1920x1440 @ 60Hz
Audio	- 5.1 CH HD Audio (VIA^® VT1705 Audio Codec)
LAN	- Realtek PHY RTL8201EL - Speed: 10/100 Ethernet - Supports Wake-On-LAN - Supports PXE
Złącza
Sloty	- 1 x PCI Express x16 slot - 1 x PCI Express x1 slot - 2 x PCI slots
Złącza	- 4 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD), NCQ and Hot Plug functions - 1 x ATA133 IDE connector (supports 2 x IDE devices) - 1 x Floppy connector - 1 x Print Port header - CPU/Chassis/Power FAN connector - 24 pin ATX power connector - 4 pin 12V power connector - CD in header - Front panel audio connector - 3 x USB 2.0 headers (support 6 USB 2.0 ports)
Tylny panel	I/O Panel - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x VGA Port - 4 x Ready-to-Use USB 2.0 Ports - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jack: Line in / Front Speaker / Microphone
Dodatkowe informacje
Cechy szczególne	- ASRock OC Tuner - Intelligent Energy Saver - Instant Boot - ASRock Instant Flash - ASRock OC DNA - Hybrid Booster: - CPU Frequency Stepless Control - ASRock U-COP - Boot Failure Guard (B.F.G.) - ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)
Akcesoria	- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
Hardware Monitor	- CPU Temperature Sensing - Chassis Temperature Sensing - CPU/Chassis/Power Fan Tachometer - CPU Quiet Fan - Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Wymiary	- Micro ATX Form Factor: 9.6-in x 8.2-in, 24.4 cm x 20.8 cm
System operacyjny	- Microsoft^® Windows^® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant
Certyfikaty	- FCC, CE, WHQL
Stan	Nowe, testowane
Gwarancja	3 miesiące

PŁYTA BEZ MASKOWNICY PORTÓW I/O
