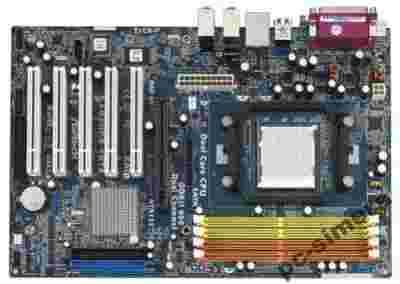

ASROCK AM2NF3-VSTA

19-01-2012, 11:52
Aukcja w czasie sprawdzania nie była zakończona.
Cena kup teraz: 159 zł
Użytkownik pc-simera
numer aukcji: 2026502873
Miejscowość ŁÓDŹ
Wyświetleń: 65
Koniec: 28-01-2012, 16:41

Dodatkowe informacje:
Stan: Używany
Standard płyty: ATX
Maksymalna ilość pamięci [GB]: 8.00
Rodzaj pamięci: DDR2,

info Niektóre dane mogą być zasłonięte. Żeby je odsłonić przepisz token po prawej stronie. captcha



PC-SIMERA
• Komputery
• Sprzedaż
• Serwis
• Naprawa
Łódź, ul Łąkowa 7b

607 [zasłonięte] 114
42 [zasłonięte]4419
PC-[zasłonięte]@tlen.pl
35[zasłonięte]653
pc-simera


Szybką wysyłkę zapewnia...



Wpłaty proszę kierować na rachunek...



32 1140 [zasłonięte] 2[zasłonięte]0040002 [zasłonięte] 605859


ASROCK AM2NF3-VSTA


100 % sprawna
gw 30dn


Product Specifications

 General
CPU - Support for Socket AM2+* / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Supports AMD's Cool 'n' Quiet Technology
- Supports Untied Overclocking Technology
- Supports Hyper-Transport Technology
- AM3 CPU Ready*

*If you use AM3 / AM2+ CPU on AM2 chipset motherboard, the system bus speed will downgrade from HT3.0 (5200 MT/s) to HT1.0 (2000 MT/s), but the CPU frequency will not be influenced.

*If you adopt AMD Phenom™ X4 AM2+ CPU on this motherboard with AGP VGA cards, please click here for AGP VGA Card support list.
Chipset - NVIDIA® nForce3 250
Memory - Dual Channel DDR2 memory technology
- 4 x DDR2 DIMM slots
- Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*

*Support with AM3 / AM2+ CPU.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports Jumperfree
- SMBIOS 2.3.1 Support
 Audio, Video and Networking
Graphics - n/a
Audio - 7.1 CH Windows® Vista™ Premium Level Superior Audio (C-Media CM6501 Audio Codec with UAA architecture)
LAN - Realtek PHY RTL8201CL
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
- Supports PXE
 Expansion / Connectivity
Slots - 5 x PCI slots
- 1 x AGP 8X slot*

*If you plan to install Windows® XP 64-bit / Vista™ 32-bit / Vista™ 64-bit OS on this motherboard, please click here to read instructions and limitation carefully. For Windows® 2000 / XP OS, there is no such limitation.
Connector - 2 x SATA 1.5 Gb/s connectors, support RAID* (RAID 0, RAID 1, JBOD) and "Hot Plug" functions
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB23 ports on the I/O panel)

*RAID function is only available under Windows® 2000, XP or XP 64-bit OS.
Rear Panel I/O ASRock 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 Port
- Audio Jack: Side Speaker / Rear Speaker / Central Bass / Line in / Front Speaker / Microphone
 Other Features / Miscellaneous
Unique Feature Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
