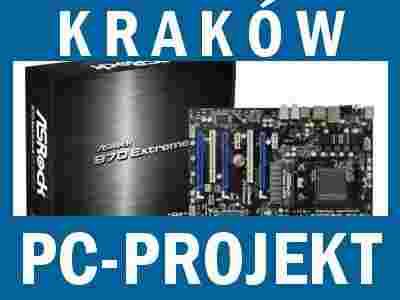

Asrock 970 Extreme4 (AM3/AM3+)

Szczegółowe Dane

DANE TECHNICZNE
Chipset	AMD 970
Socket	AM3 , AM3+
Obsługiwane procesory	Athlon II, Phenom II, Bulldoger
Złącze graficzne	PCI-E (1.0 , 2.0)
Obsługa technologii SLI/CrossFire	Tak
Karta Sieciowa	10/100/1000 Mb/s
Liczba slotów SATA	5
Obsługa Raid	Tak
Liczba slotów pamięci	4
Kontrolery	SATA, USB 2.0 i 3.0
Typ obsługiwanych pamięci	DDR3
Dźwięk	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support - Supports THX TruStudio™
Format	ATX
Karta Graficzna	Brak
OGóLNE
Gwarancja	24 miesiące
Producent	Asrock
WYMIARY
Głębokość	21.8cm
Szerokość	30.5cm

Obsługa procesorów:

- Support for Socket AM3+ processors

- Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Supports 8-Core CPU
- Supports UCC feature (Unlock CPU Core)
- Digi Power Design
- 4 + 1 Power Phase Design
- Supports CPU up to 140W
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2400 MHz (4.8 GT/s)
- Supports Untied Overclocking Technology

- Supports Hyper-Transport 3.0 (HT 3.0) Technology

Chipset

- Northbridge: AMD 970

- Southbridge: AMD SB950

Pamięć

- Dual Channel DDR3 memory technology

- 4 x DDR3 DIMM slots
- Supports DDR3 2100(OC)/1866*/1800*/1600*/1333/1066/800 non-ECC, un-buffered memory
- Max. capacity of system memory: 32GB

*Prędkość pracy pamięci 1866/[zasłonięte]/1600 jest zależna od zainstalowanego procesora AM3/AM3+. Więcej informacji znajdą Państwo na oficjalnej stronie AMD.

BIOS

- 32Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support

- CPU, VCCM, NB, SB Voltage Multi-adjustment

Audio, Video i sieć
karta graficzna - n/a
Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio™
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Złącza
Sloty - 3 x PCI Express 2.0 x16 slots (PCIE2/PCIE4: single at x16 (PCIE2) / x8 (PCIE4), or dual at x8 (PCIE2) / x8 (PCIE4) ; PCIE5: x4 mode)
- 2 x PCI Express 2.0 x1 slots
- 2 x PCI slots
- Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX™
- Supports NVIDIA® SLI™
SATA3 - 5 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and "Hot Plug" functions
USB 3.0 - 2 x Rear USB 3.0 ports by Asmedia ASM1042, support USB 1.0/2.0/3.0 up to 5Gb/s
- 1 x Front USB 3.0 header (supports 2 USB 3.0 ports) by Asmedia ASM1042, supports USB 1.0/2.0/3.0 up to 5Gb/s
Złącza - 5 x SATA3 6.0 Gb/s connectors
- 1 x IR header
- 1 x CIR header
- 1 x COM port header
- 1 x IEEE 1394 header
- 1 x HDMI_SPDIF header
- 1 x Power LED header
- CPU/Chassis/Power FAN connector
- 24 pin ATX power connector
- 8 pin 12V power connector
- Front panel audio connector
- 3 x USB 2.0 headers (support 6 USB 2.0 ports)
- 1 x USB 3.0 header (supports 2 USB 3.0 ports)

- 1 x Dr. Debug (7-Segment Debug LED)

Tylny panel I/O Panel
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Coaxial SPDIF Out Port
- 1 x Optical SPDIF Out Port
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 2 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x IEEE 1394 Port
- 1 x Clear CMOS Switch with LED

- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

Dodatkowe informacje
Cechy szczególne - ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock SmartView
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock On/Off Play Technology
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- Turbo UCC
Smart Switch - 1 x Power Switch with LED
- 1 x Reset Switch with LED
- 1 x Clear CMOS Switch with LED

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, AMD OverDrive™ Utility, AMD Fusion, AMD Fusion Media Explorer, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial)

Akcesoria

- 1 x ASRock SLI_Bridge_2S Card

- Quick Installation Guide, Support CD, I/O Shield
- 4 x SATA Data Cables
- 1 x 3.5mm Audio Cable
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

Wymiary

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors)

System operacyjny - Microsoft® Windows® 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP 64-bit compliant

Certyfikaty

- FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)
