Model:
|

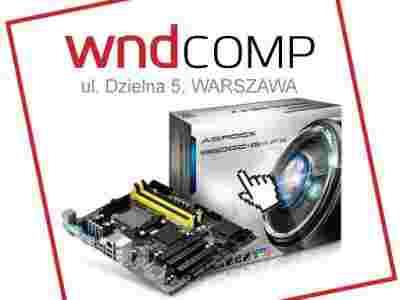

960GC-GS FX
|
|
Gniazdo procesora:
|
Socket AM2
|
|
Socket AM2+
|
|
Socket AM3
|
|
Socket AM3+
|
|
Typ procesora:
|
AMD Athlon
|
|
AMD Athlon FX
|
|
AMD Athlon X2
|
|
AMD Athlon II
|
|
AMD Athlon II X2
|
|
AMD Athlon II X3
|
|
AMD Athlon II X4
|
|
AMD Sempron
|
|
AMD Phenom II X2
|
|
AMD Phenom II X3
|
|
AMD Phenom II
|
|
AMD Phenom II X4
|
|
AMD Phenom II X6
|
|
AMD Phenom FX
|
|
Zintegrowany procesor:
|
nie
|
|
Producent chipsetu:
|
AMD
|
|
Typ chipsetu:
|
- Northbridge AMD 760G
|
|
- Southbridge AMD SB710
|
|
Rodzaj pamięci:
|
DDR2
|
|
DDR3
|
|
Liczba gniazd DDR2:
|
2 szt.
|
|
Liczba gniazd DDR3:
|
2 szt.
|
|
Częstotliwość szyny pamięci:
|
533 MHz
|
|
667 MHz
|
|
800 MHz
|
|
1066 MHz
|
|
1333 MHz
|
|
1600 MHz
|
|
1866 MHz
|
|
Max. wielkość pamięci (GigaBajt) :
|
16 GB
|
|
Złącza PCI:
|
2 szt.
|
|
Złącza PCI-E 16x ver. 2.0:
|
1 szt.
|
|
Złącza PCI-E 1x :
|
1 szt.
|
|
Maksymalna ilość urządzeń SATA:
|
6
|
|
Maksymalna ilość urządzeń ATA:
|
1
|
|
RAID:
|
tak
|
|
Szczegółowe dane o interfejsach dysków/napędów:
|
- 6 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug
|
|
Zintegrowana karta graficzna:
|
tak
|
|
Typ zintegrowanej karty graficznej:
|
AMD Radeon 3000 graphics
|
|
- DX10 class iGPU, Pixel Shader 4.0
|
|
- Max. shared memory 512MB
|
|
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
|
|
Karta dźwiękowa:
|
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
|
|
Interfejs sieciowy:
|
10/100/1000 Mbit/s
|
|
Interfejs sieciowy:
|
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
|
|
- Realtek RTL8111G
|
|
- Supports Wake-On-LAN
|
|
- Supports LAN Cable Detection
|
|
- Supports Energy Efficient Ethernet 802.3az
|
|
- Supports PXE
|
|
Porty USB na tylnym panelu:
|
4
|
|
Porty USB do wyprowadzenia z płyty:
|
6
|
|
Liczba portów USB 3.0:
|
0
|
|
Port COM:
|
Tak
|
|
Port LPT:
|
Tak
|
|
Interfejsy na tylnym panelu:
|
- 1 x PS/2 Mouse Port
|
|
- 1 x PS/2 Keyboard Port
|
|
- 1 x Serial Port COM1
|
|
- 1 x D-Sub Port
|
|
- 4 x USB 2.0 Ports
|
|
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
|
|
- HD Audio Jack Line in / Front Speaker / Microphone
|
|
Złącza dostępne na płycie:
|
- 1 x ATA133 IDE Connector (Supports 2 x IDE devices)
|
|
- 1 x Floppy Connector
|
|
- 1 x IR Header
|
|
- 1 x Print Port Header
|
|
- 1 x Chassis Intrusion Header
|
|
- 1 x CPU Fan Connector (4-pin)
|
|
- 1 x Chassis Fan Connector (3-pin)
|
|
- 1 x Power Fan Connector (3-pin)
|
|
- 1 x 24 pin ATX Power Connector
|
|
- 1 x 4 pin 12V Power Connector
|
|
- 1 x CD In Header
|
|
- 1 x Front Panel Audio Connector
|
|
- 1 x SPDIF Out Connector
|
|
- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)
|
|
Funkcje specjalne:
|
- ASRock OC Tuner
|
|
- ASRock Intelligent Energy Saver
|
|
- ASRock Instant Boot
|
|
- ASRock Instant Flash
|
|
- ASRock OC DNA
|
|
- ASRock APP Charger
|
|
- ASRock XFast USB
|
|
- ASRock XFast LAN
|
|
- ASRock XFast RAM
|
|
- ASRock X-Boost
|
|
- Hybrid Booster
|
|
- CPU Frequency Stepless Control
|
|
- ASRock U-COP
|
|
- Boot Failure Guard (B.F.G.)
|
|
- ASRock AM2 Boost ASRock Patented Technology to boost memory performance up to 12.5%
|
|
Bios - 16Mb AMI legal BIOS
|
|
- Supports "Plug and Play"
|
|
- ACPI 1.1 compliance wake up events
|
|
- Supports jumperfree
|
|
- SMBIOS 2.3.1 support
|
|
- CPU, VCCM, NB Voltage multi-adjustment
|
|
Format płyty:
|
micro ATX
|
|
Akcesoria w zestawie:
|
- Quick Installation Guide, Support CD, I/O Shield
|
|
- 2 x SATA Data Cables
|
|
Obsługiwane systemy operacyjne:
|
Windows XP
|
|
Windows Vista
|
|
Windows 7
|
|
Windows 8
|
|
Oprogramowanie:
|
Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
|
