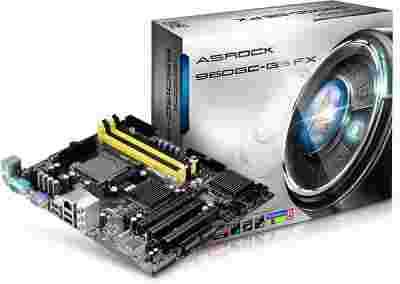

Płyta główna Asrock 960GC-GS FX
Obsługa procesorów AM2, AM2+, AM3, AM3+
Obsługa pamięci DDR2 lub DDR3
4x SATA + złącze ATA
Zintegrowana karta graficzna Radeon HD3000 Dx10 do 512MB pamięci przydzielanej
Do każdego zakupu otrzymujesz paragon lub fakturę VAT
Gwarancja 24 miesiące Wersja BOX
W zestawie sterowniki , instrukcja ,maskownica na tył obudowy,kable SATA
Specyfikacja:
| Ogólne |
| CPU |
- Support for Socket AM3+ processors
- Support for Socket AM3 processors: AMD Phenom™ II X6 / X4 / X3 / X2 (except 920 / 940) / Athlon II X4 / X3 / X2 / Sempron processors
- Support for Socket AM2+ / AM2 processors: AMD Phenom™ FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
- Supports 8-Core CPU
- Supports AMD OverDrive™ with ACC feature (Advanced Clock Calibration)
- Supports AMD's Cool 'n' Quiet Technology
- FSB 2600 MHz (5.2 GT/s)
- Supports Untied Overclocking Technology
- Supports Hyper-Transport 3.0 (HT 3.0) Technology |
| Chipset |
- Northbridge: AMD 760G
- Southbridge: AMD SB710 |
| Pamięć |
- Dual Channel DDR3/DDR2 Memory Technology*
- 2 x DDR3 DIMM Slots**
- Supports DDR3 1866(OC)/1600(OC)/1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB***
- 2 x DDR2 DIMM Slots****
- Supports DDR2 1066*****/800/667/533 non-ECC, un-buffered memory
- Max. capacity of system memory: 8GB***
*DDR3 and DDR2 are supported separately.
**DDR3 memory is only supported by installing AM3/AM3+ CPU.
***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
****DDR2 memory is only supported by installing AM2/AM2+/AM3 CPU.
*****Support with AM3 / AM2+ CPU.
|
| BIOS |
- 16Mb AMI legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- CPU, VCCM, NB Voltage multi-adjustment |
| Audio, Video i sieć |
| karta graficzna |
- Integrated AMD Radeon 3000 graphics
- DX10 class iGPU, Pixel Shader 4.0
- Max. shared memory 512MB
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz |
| Audio |
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec) |
| LAN |
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111G
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE |
| Złącza |
| Sloty |
- 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x16 mode)
- 1 x PCI Express 2.0 x1 Slot
- 2 x PCI Slots |
| Magazynowanie |
- 6 x SATA2 3.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 10 and JBOD), NCQ, AHCI and Hot Plug |
| Złącza |
- 1 x ATA133 IDE Connector (Supports 2 x IDE devices)
- 1 x Floppy Connector
- 1 x IR Header
- 1 x Print Port Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x Power Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x CD In Header
- 1 x Front Panel Audio Connector
- 1 x SPDIF Out Connector
- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports) |
| Tylny panel |
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone |
| Dodatkowe informacje |
| Cechy szczególne |
- ASRock OC Tuner
- ASRock Intelligent Energy Saver
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock OC DNA
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock X-Boost
- Hybrid Booster:
- CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
- ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5% |
| Support CD |
- Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar |
| Akcesoria |
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables |
| Hardware Monitor |
- CPU/Chassis temperature sensing
- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan
- CPU/Chassis/Power Fan multi-speed control
- CASE OPEN detection
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore |
| Wymiary |
- Micro ATX Form Factor |
| System operacyjny |
- Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit / Vista™ / Vista™ 64-bit / XP / XP Media Center / XP 64-bit compliant |
| Certyfikaty |
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required) |
|
