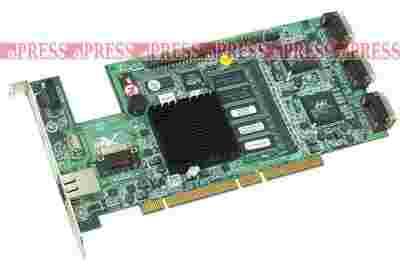

Model: ARC-1160
Specifications
Type
SATA II (3.0Gb/s)
Internal Connectors
Multi-layer SATA connector
Interface
PCI-X 64bit/133MHz
Cache Memory
One SODIMM socket with default 256MB of DDR333 SDRAM with ECC protection, Upgrade to 1GB. An ECC or non-ECC SDRAM module using X8 or X16 chip organizatoin
RAID
RAID 0/1/1E/3/5/6 JBOD
Operating Systems Supported
Windows 2000/XP/Server 2003
Red Hat Linux, SuSE Linux
FreeBSD
Solaris 10x86
UnixWare 7.1.x
Netware 6.5
Dimensions
8.4" x 3.9"
Windows Vista
Works with Windows Vista
Features
Features
Intel IOP331
Write-through or write-back cache support
Support up to 16 SATA II drives
Multi-adapter support for large storage requirements
BIOS boot support for greater fault tolerance
RoHS Compliant
RAID Features:
RAID level 0, 1, 1E, 3, 5, 6 and JBOD
Multiple RAID selection
Array roaming
Online RAID level/stripe size migration
Online RAID capacity expansion and RAID level migration simultaneously
Instant availability and background initialization
Automatic drive insertion/removal detection and rebuild
Greater than 2TB per volume set
Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives
Support spin down drivers when not in use to extend service life (MAID)
Monitors/Indicators:
System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer
SMTP support email notification
SNMP support for remote notification
