AOpen AX4SPE Max (Intel 865PE) Socket 478

26-06-2014, 10:25
Aukcja w czasie sprawdzania była zakończona.
Cena kup teraz: 79 zł
Użytkownik ballx
numer aukcji: 4338431917
Miejscowość Gliwice
Wyświetleń: 13
Koniec: 26-06-2014, 10:06

Dodatkowe informacje:
Stan: Używany
Standard płyty: ATX
Socket: Intel Socket 478
Rodzaj pamięci: DDR

info Niektóre dane mogą być zasłonięte. Żeby je odsłonić przepisz token po prawej stronie. captcha

Przedmiotem aukcji jest

PŁYTA GŁÓWNA

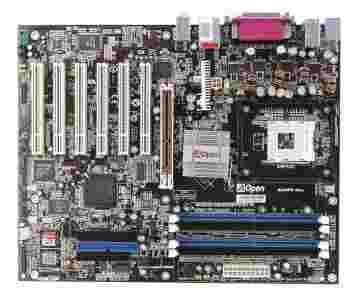

AOpen AX4SPE Max (Intel 865PE)


Socket 478





Specyfikacja płyty

AOpen AX4SPE Max

Processor
  • Socket 478 for Intel® Pentium® 4 / Celeron® processors
  • Intel® Celeron® Processors 1.7GHz - 2.0GHz or higher (400MHz FSB)
  • Intel® Pentium® 4 Processors 1.4GHz - 3.06GHz or higher (533MHz FSB)
  • Intel® Pentium® 4 Processors 2.4GHz - 3.2GHz or higher (800MHz FSB)
  • Supports processor at 400 / 533 / 800MHz front side bus
  • Supports processor with Hyper-Threading technology
Chipset
  • Intel 865PE chipset
    • AGP 4x/8x slot (1.5V only) with fast write capability
    • Supports 400/533/800MHz Intel NetBurst micro-architecture bus
    • Supports up to 4GB of DDR333 or DDR400 SDRAM memory
    • Supports single/dual channel memory configuration
  • Intel ICH5R chipset
    • Eight high-speed USB 2.0 ports
    • 2x Serial ATA/150 ports
    • Dual channel Ultra ATA/100 IDE bus master controller
    • PCI bus mastering v2.3
    • I/O APIC
    • Supports both ACPI and legacy APM power management
    • Serial ATA/150 RAID 0 support
Cache memory
  • CPU Built-in 512KB (Northwood) L2 cache for Pentium 4 or 128KB L2 cache for Celeron
System memory
  • 4 x 184-pin unbuffered DDR SDRAM DIMM
  • Supports up to 4GB of unbuffered and non-ECC single/double-sided DDR266 / DDR333 / DDR400 SDRAM memory
  • Supports 2.5V DDR SDRAM
  • Supports ECC memory
PCI IDE
  • 2x Ultra ATA-66/100 IDE ports integrated in ICH5R (up to 4 devices)
    • Support for PIO, UDMA-33, Ultra ATA-66/100 IDE devices
  • 2x Serial ATA/150 ports supported by ICH5R
    • Up to 150MB/s transfer speeds
    • Supports Serial ATA RAID 0
  • 2x Serial ATA/150 ports powered by Silicon Image SiI3112A controller
    • Supports RAID 0 or 1
I/O Ports and Headers
  • 1x floppy port (360KB - 2.88MB)
  • 2x serial port
  • 1x parallel port (SPP/EPP/ECP)
  • PS/2 Keyboard
  • PS/2 Mouse
  • 8x USB 2.0 ports (6x rear and 2x by cable through on-board header)
  • 1x Gigabit Ethernet (RJ-45) LAN jack (powered by Broadcom BCM5702)
  • 3x fan headers
  • Audio jacks for Line In, Line Out and MIC (powered by Realtek ALC650)
  • S/PDIF input/output header
  • 2x IEEE-1394 header
  • 1x IrDA header for infra-red module
  • Game port header
  • WOL (Wake on LAN) header
  • Dr. LED header
  • Front audio header
Expansion slots
  • 6x 32-bit PCI slots, PCI 2.3 compliant
  • 1x AGP 2x/4x/8x slot (0.8V/1.5V only)
Power Management
  • Supports ACPI (Advanced Configuration and Power Interface)
Form Factor
  • ATX Form Factor : 30.5cm x 24.4cm
  • Fits into regular ATX case
BIOS
  • 4Mbit (512KB) Flash EEPROM
  • Award Flash BIOS with PnP and ACPI support
  • Multi-boot on ZIP, ATAPI CD-ROM, SCSI, SATA, IDE #1, #2, #3, #4

stan idealny -leżak magazynowy

  3 miesiące gwarancji

płyta , maskownica ,kabelki ,akcesoria, pudełko.

tel 605[zasłonięte]605
