5szt. MegaRAID 5/6 SAS 6Gb/s 512MB 9261-8i PCI-E

11-07-2012, 20:58
Aukcja w czasie sprawdzania nie była zakończona.

Cena kup teraz: 3 000 zł

Użytkownik -pcmixww-

numer aukcji: 2453544261

Miejscowość ostrzeszow

Zostało sztuk: 6 Wyświetleń: 21

Koniec: 12-07-2012, 9:28

Dodatkowe informacje:
Stan: Używany

przedmiotem aukcji jest :

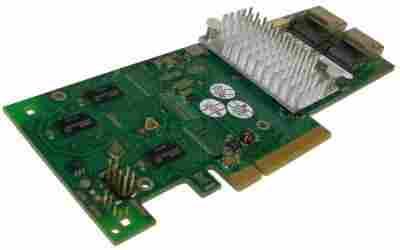

Komplet 5szt. kontrolerów SAS/SATAII 6Gb/s PCI-E x8

FSC LSI RAID 5/6 SAS 6G D2616

(LSI MegaRAID SAS 9261-8i)

512MB DDR2 (800MHz)

RAID 0, 1, 5 i 6

Działa z większością płyt głównych posiadających co najmniej PCI-e o długości x8

( można użyć też w złączu PCI-e x16 )

Strona o mnie - przeczytaj zanim zalicytujesz!!!

MegaRAIDSAS9261-8i

Solution Provided

Eight-port internal SATA+SAS solution for high-density servers and workstations using up to 128 SATA and/or SAS drives

Physical Dimensions

MD2 Low profile (6.6” X 2.536”)

Internal Connectors

Two Mini-SAS SFF8087 4i internal connectors (horizontal)

Device Support

Up to 128 SAS and/or SATA hard drives

Host Bus Type

x8 lane PCI Express 2.0 Compliant

Data Transfer Rates

Up to 6Gb/s per port

I/O Processor/SAS Controller

LSISAS2108 RAID-on-Chip (ROC)

Cache Memory

512MB 800MHz DDR II SDRAM

Battery Backup Unit

LSIiBBU07, an intelligent battery backup module option that directly connects to the adapter

Key RAID Data Protection Features

• RAID levels 0, 1, 5, and 6

• RAID spans 10, 50 and 60

• Online Capacity Expansion (OCE)

• Online RAID Level Migration (RLM)

• Auto resume after loss of system power during array rebuild or reconstruction (RLM)

• Single controller Multipathing (failover)

• Load Balancing

• Configurable stripe size up to 1MB

• Fast initialization for quick array setup

• Check Consistency for background data integrity

• SafeStore Encryption Services

– Instant Secure Erase

• SSD Support with SSD Guard™

• Patrol read for media scanning and repairing

• 64 logical drive support

• Up to 64TB LUN support

• DDF compliant Configuration on Disk (COD)

• S.M.A.R.T support

• Global and dedicated Hot Spare with Revertible Hot Spare support

– Automatic rebuild

– Enclosure affinity

– Emergency SATA hot spare for SAS arrays

• Enclosure management

– SES (inband)

– SGPIO (sideband)

Operating Temperature

Maximum ambient: 60°C (44.5°C w/iBBU)

Operating Voltage

+3.3V

RAID Management

MegaRAID Management Suite

- MegaRAID Storage Manager™

- MegaCLI (command-line interface)

- WebBIOS

OS Support

Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more.

Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support

Możliwość wystawienia rachunku.

Udzielamy miesięcznej gwarancji.

Zapraszamy do udziału w naszych aukcjach

MegaRAIDSAS9261-8i
Solution Provided	Eight-port internal SATA+SAS solution for high-density servers and workstations using up to 128 SATA and/or SAS drives
Physical Dimensions	MD2 Low profile (6.6” X 2.536”)
Internal Connectors	Two Mini-SAS SFF8087 4i internal connectors (horizontal)
Device Support	Up to 128 SAS and/or SATA hard drives
Host Bus Type	x8 lane PCI Express 2.0 Compliant
Data Transfer Rates	Up to 6Gb/s per port
I/O Processor/SAS Controller	LSISAS2108 RAID-on-Chip (ROC)
Cache Memory	512MB 800MHz DDR II SDRAM
Battery Backup Unit	LSIiBBU07, an intelligent battery backup module option that directly connects to the adapter
Key RAID Data Protection Features	• RAID levels 0, 1, 5, and 6 • RAID spans 10, 50 and 60 • Online Capacity Expansion (OCE) • Online RAID Level Migration (RLM) • Auto resume after loss of system power during array rebuild or reconstruction (RLM) • Single controller Multipathing (failover) • Load Balancing • Configurable stripe size up to 1MB • Fast initialization for quick array setup • Check Consistency for background data integrity • SafeStore Encryption Services – Instant Secure Erase • SSD Support with SSD Guard™	• Patrol read for media scanning and repairing • 64 logical drive support • Up to 64TB LUN support • DDF compliant Configuration on Disk (COD) • S.M.A.R.T support • Global and dedicated Hot Spare with Revertible Hot Spare support – Automatic rebuild – Enclosure affinity – Emergency SATA hot spare for SAS arrays • Enclosure management – SES (inband) – SGPIO (sideband)
Operating Temperature	Maximum ambient: 60°C (44.5°C w/iBBU)
Operating Voltage	+3.3V
RAID Management	MegaRAID Management Suite - MegaRAID Storage Manager™ - MegaCLI (command-line interface) - WebBIOS
OS Support	Extensive support includes Microsoft® Windows® Vista/2008/Server 2003/2000/XP, Linux®, Solaris™ (x86), Netware®, FreeBSD®, VMware® and more. Visit the LSI download Center for the most complete list of supported operating systems: lsi.com/channel/support
