IEEE 802.3:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x

IEEE 802.11 Standards:
IEEE802.11b
IEEE802.11g
IEEE802.11n

ADSL Standard:
ADSL
ADSL2
ADSL2+

Annex Type:
Annex A
Annex M

Frequency Range:
2.412GHz~2.484GHz

Port Count and Speed:
one RJ11 port/
oen 10/100Mbps auto-negotiation RJ45 port (Auto MDI/MDIX）

4 10/100Mbps auto-negotiation RJ45 port (Auto MDI/MDIX）
3 10/100Mbps auto-negotiation RJ45 port (Auto MDI/MDIX）


NAT Entries:
NAT Entries:8128
wireless client（wlan－lan: over 1Mbps per device）:16

Input Voltage Range (VAC):
100-240V

Output Voltage Range(VDC):
9V

Max. Consumption:
7W

Operating Temperature:
0℃ ~ 40℃

Storage Temperature:
-40ºC ～ 70ºC

Operating Humidity:
10% ～ 90% RH Non-condensing

Storage Humidity:
5% ～90% RH Non-condensing

LEDs:
POWER/ADSL/WLAN/LAN/SYS/WPS

Antenna:
detachable 5dBi omni-directional antenna

Transmission Media:
CAT.5/CAT.5e/CAT.6/Telephone Line

Dimensions (L/W/H)mm:
171.95*110.12*31

Certifications:
FCC/CE/RoHS

Package Contents:

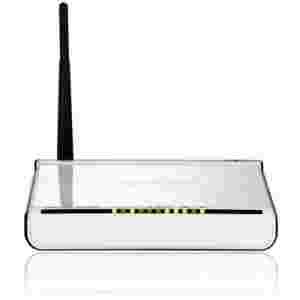

One W150D ADSL2/2+ router
Quick Installation Guide
One Power Adapter
One Voice Splitter
CD-ROM(User Guide included)
One Network Cable
Two Telephone Lines

Minimum Requirements:
Browse: Internet Explorer 6.0 or Firefox 1.0 Higher
CD-ROM Drive
Network Adapter
