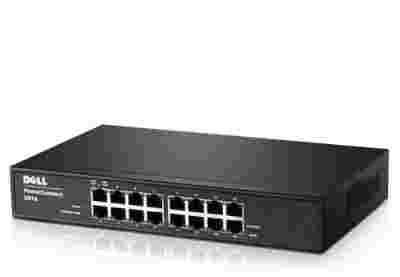

Dell PowerConnect 2816
16 x 10/100/1000 Gigabit Switch
Przełącznik Dell™ PowerConnect™ 2816 zapewnia wyjątkową opłacalność, elastyczne możliwości zarządzania i oszczędność energii. Przełączniki te idealnie nadają się do firm, oddziałów, szkół i placówek sprzedaży detalicznej z niewielkim środowiskiem sieciowym. Oferuje dalsze oszczędności dzięki inteligentnej technologii ekologicznych portów.
PowerConnect 2816 (35066)
------ Performing the Power-On Self Test (POST) ------
UART Channel Loopback Test........................PASS
Testing the System SDRAM..........................PASS
Boot1 Checksum Test...............................PASS
Boot2 Checksum Test...............................PASS
Flash Image Validation Test.......................PASS
BOOT Software Version 1.0.0.12 Built 08-Feb-2009 17:19:21
##
########### ##### ###### ######
############## ######### ###### ######
############### ######### ###### ######
################ ########## #### ###### ######
################ ######### ###### ###### ######
######################## ######### ###### ######
###### ############## ######## ####### ######
###### ###################### ######### ######
###### #################### ########## ######
###### ################### ########### ######
###### ################## ############# ######
###### ################################# ######
################################################# ############
################ ################ ############# ############
################ ############## ############# ############
############### ########## ############# ############
############## ######## ############# ############
########### #### ############# ############
##
Board Type - PowerConnect 2816
PowerConnect 2816 board based on FireFox 88E6218 ARM946E-S processor
64 MByte SDRAM. I-Cache 8 KB. D-Cache 8 KB. Cache Enabled.
MAC Address : a4:ba:db:6d:a5:04.
Autoboot in 2 seconds - press RETURN or Esc. to abort and enter prom.
Preparing to decompress...
OK
Running from RAM...
Operational Mode old state managed; new state managed
Operational Mode - mode is managed
*********************************************************************
*** Running SW Ver. 1.0.0.33 Date 17-Feb-2009 Time 17:33:52 ***
*********************************************************************
HW version is 00.00.02
Base Mac address is: a4:ba:db:6d:a5:04
Dram size is : 64M bytes
Dram first block size is : 46380K bytes
Dram first PTR is : 0x12B5000
Flash size is: 8M
01-Jan-2000 00:00:05 %CDB-I-LOADCONFIG: Loading startup configuration.
Device configuration:
Slot 1 - PowerConnect 2816
------------------------------------
-- Unit Standalone --
------------------------------------
Tapi Version: v1.3.3.1
Core Version: v1.3.3.1
01-Jan-2000 00:00:16 %INIT-I-InitCompleted: Initialization task is completed
01-Jan-2000 00:00:16 %SNMP-I-CDBITEMSNUM: Number of startup configuration items loaded: 0
[2J[1mWelcome to Dell Easy Setup Wizard.[0m
The Setup Wizard guides you through the initial switch configuration, and gets
you up and running as quickly as possible. You can skip the setup wizard, and
enter CLI mode to manually configure the switch.
The system will prompt you with a default answer; by pressing enter, you accept
the default.
You must respond to the next question to run the setup wizard within
60 seconds, otherwise the system will continue with normal operation using
the default system configuration.
Would you like to enter the setup wizard (you must answer this question within
60 seconds)? (Y/N)[[1mY[0m]
Setup Wizard Timeout.....
console> en
console#
login admin
haslo password
DANE:
http://www.dell.com/pl/firmiinstytucji/p/powerconnect-2816/pd?refid=switch-powerconnect-2816&isredir=true
SPRZĘT JEST UŻYWANY PRZETESTOWANY
TECHNICZNIE SPRAWNY.
GWARANCJA - Wystawiamy Faktury VAT
Kontakt:
Osoba kontaktowa:
***BRROCOM***
e-mail:[zasłonięte]@computerpartner.pl tel. 604-[zasłonięte]-887
KOSZTY TRANSPORTU FIRMĄ SPEDYCYJNĄ :
29ZŁ-PRZELEW. ----------- 39ZŁ ZA POBRANIEM.
|
KONIECZNIE ZOBACZ INNE
MOJE AUKCJE !!!
|
Dlaczego warto kupić akurat u nas?
1. Jesteśmy w stanie zapewnić bardzo dobre ceny. 2. Udzielamy pewnej gwarancji oraz wystawiamy FV, ponieważ towar pochodzi
od znanych dużych zagranicznych hurtowni i producentów. 3. Gwarancja zadowolenia z transakcji ,wystarczy poczytać nasze komentarze. 4. Sumiennie obsługujemy każdego klienta dbając o jego satysfakcję z zakupu. 5. Bardzo dobry kontakt telefoniczny, e-mail 6. Masz gwarancję na to że kupujesz dokładnie to co widzisz na zdjęciach naszych aukcji.
7. Masz pewność ze odpowiemy na Twój komentarz.
PROSIMY UWAŻNIE PRZECZYTAĆ INFORMACJE NA NASZEJ STRONIE DOTYCZĄCE LICYTACJI !
****BRROCOM**** - zaprasza do licytacji..
|
